Fiat 45-76

The Fiat 45-76 is a tractor produced by Fiat. It is equipped with a 165.4 ci 2.7 L engine. The rated power output is 44.4 hp 33.1 kW. Transmission: 20 forward and 8 reverse. Operating weight: 3748 to 3946 pounds.

Overview

	1990 - 1992 76 SeriesOrchard/Vineyard tractor
1990 - 1992
76 Series
Orchard/Vineyard tractor

Production
Manufacturer	Fiat
Orchard/Vineyard tractor

Fiat 45-76 Engine
Fiat 2.7L 3-cyl diesel
Engine details ...

Fiat 45-76 Power
Engine	44.4 hp 33.1 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post mid-mount ROPS.

Hydraulics
Type	open center
Pressure	2697 psi 186.0 bar
Pump flow	8.7 gpm 32.9 lpm

Tractor hitch
Rear Type	I
Control	position and lower-link draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional
Engine RPM	540@2200
	1000@2380

Dimensions & Tires
2WD Wheelbase	74.2 inches 188 cm
4WD Wheelbase	74.3 inches 188 cm
Weight	3748 to 3946 pounds
Front tire	5.00-15
2WD Rear tire	9.5-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Watts (rated)	400
Battery volts	12
Battery AH	100

References
Fiat 45-76 55-76 60-76 70-76 80-76 (603.64.205.00) published in 1991

Engine

Engine Detail — 165.4 ci / 2.7 L Diesel

Manufacturer	Fiat 8035.06
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	165.4 ci 2.7 L
Bore/Stroke	3.94x4.53 inches 100 x 115 mm
Power	44.4 hp 33.1 kW
Air cleaner	dry
Compression	17:1
Rated RPM	2500
Firing order	1-2-3
Starter	electric
Starter volts	12
Intake valve clearance	0.010 inches (cold) 0.254 mm
Exhaust valve clearance	0.014 inches (cold) 0.356 mm

Transmission

Transmission options
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper

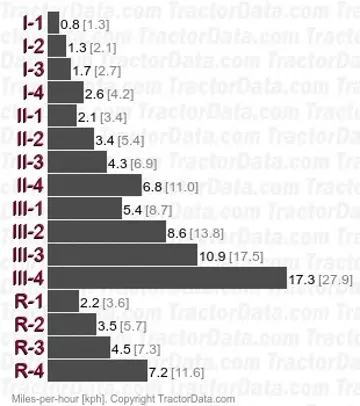

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	254mm dry disc
Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range.
With 9.5/9-28 rear tires.

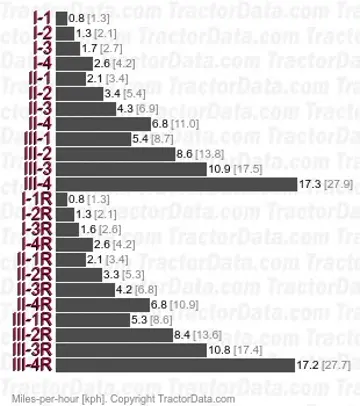

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	254mm dry disc
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser.
With 9.5/9-28 rear tires.

Transmission — 20 forward and 8 reverse creeper

Type	creeper
Gears	20 forward and 8 reverse
Clutch	254mm dry disc
Optional creeper range for the standard 12-speed transmission.
With 9.5/9-28 rear tires.

Dimensions

Fiat 45-76 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 9.5-28
4WD Standard tires (ag)	Front: 6.00-16. Rear: 11.2/12-28
4WD Optional tires (ag)	Front: 6.00-16. Rear: 12.4/11-24
4WD Optional tires (ag)	Front: 7.00-12. Rear: 11.2/10-24
4WD Optional tires (ag)	Front: 7.5L-15. Rear: 12.4/11-24

Dimensions
2WD Wheelbase	74.2 inches 188 cm
4WD Wheelbase	74.3 inches 188 cm
2WD Length	113.6 inches 288 cm
4WD Length	109.9 inches 279 cm
2WD Ground clearance	12.8 inches 32 cm
4WD Ground clearance	8.7 inches 22 cm
Front tread	38.8/41.3 inches 98/104 cm
Rear tread	29.3/33.7/40.2/44.5/45.1/49.4 inches 74/85/102/113/114/125 cm

Fiat 45-76 Weight
2WD	3748 lbs 1700 kg
4WD	3946 lbs 1789 kg
2WD Ballasted	4101 lbs 1860 kg
4WD Ballasted	4299 lbs 1950 kg

Fiat 45-76 Height
2WD Steering wheel	53.5 inches 135 cm
4WD Steering wheel	51.6 inches 131 cm
2WD Hood	45.7 inches 116 cm
4WD Hood	47.4 inches 120 cm
2WD ROPS	93.7 inches 237 cm
4WD ROPS	94.5 inches 240 cm

Photos

Fiat 45-76 tractor photo
