Fiat 415

The Fiat 415 is a tractor produced by Fiat. It is equipped with a 138.52 ci 2.3 L engine. The rated power output is 44 hp 32.8 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3505 to 4057 pounds.

Overview

	1965 - 1968	1965 - 1968

Production
Manufacturer	Fiat

Fiat 415 Engine
Fiat 2.3L 4-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

Fiat 415 Transmission
6-speed
Transmission details ...

Fiat 415 Power
Engine	44 hp 32.8 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Hydraulics
Pump flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear lift	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO	live (two-stage cluch)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	75.5 inches 191 cm
Weight	3505 to 4057 pounds
Front tire	6.00-16
Rear tire	12.4-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Charging amps	8
Charging volts	24
Batteries	2
Battery volts	12

Engine

Engine Detail — 138.52 ci / 2.3 L Diesel

Manufacturer	Fiat
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	138.52 ci 2.3 L
Bore/Stroke	3.3465x3.937 inches 85 x 100 mm
Power	44 hp 32.8 kW
Compression	21.5:1
Rated RPM	2500
Firing order	1-3-4-2
Starter volts	24
Oil capacity	8.25 qts 7.8 L

Transmission

Transmission — 6 forward and 2 reverse

Gears

6 forward and 2 reverse

Dimensions

Fiat 415 Tires
Ag front	6.00-16
	7.50-20 (MFWD)
Ag rear	12.4-28
	12.4-28 (MFWD)

Dimensions
Wheelbase	75.5 inches 191 cm
Length	118.1 inches 299 cm
Width	50.5 inches 128 cm
Height	51.2 inches 130 cm
2WD Weight	3505 lbs 1589 kg
4WD Weight	4057 lbs 1840 kg
Ground clearance	15.4 inches 39 cm

Photos

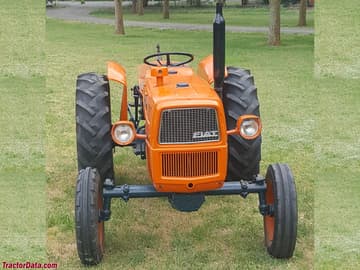

Fiat 415

Fiat 415

Fiat 415
