Fiat 70-76
The Fiat 70-76 is a tractor produced by Fiat. It is equipped with a 220.5 ci 3.6 L engine. The listed engine power is Diesel (listed): 69.1 hp / 51.5 kW. Transmission: 20 forward and 12 reverse. Operating weight: 4782 to 5225 pounds.
Engine Power
Diesel (listed): 69.1 hp / 51.5 kW
Fuel & Capacities
Diesel
Transmission
20 forward and 12 reverse
Operating Weight
4782 to 5225 pounds
Overview
 | 1990 - 1992
76 SeriesOrchard/Vineyard tractor
76 Series
Orchard/Vineyard tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Orchard/Vineyard tractor | |
Original price was $23,200 in 1990 | |
Fiat 70-76 Engine | |
|---|---|
Fiat 3.6L 4-cyl diesel | |
Engine details ...  |
Fiat 70-76 Power | |
|---|---|
Engine | 69.1 hp
51.5 kW |
PTO (claimed) | 62 hp
46.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
Two-post mid-mount ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2697 psi
186.0 bar |
Pump flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and lower-link draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
540/1000 (1.375)OptOptional | |
Engine RPM | 540@2200 |
1000@2380 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 78.8 inches
200 cm |
4WD Wheelbase | 83.1 inches
211 cm |
Weight | 4782 to 5225 pounds |
Front tire | 5.50-16 |
2WD O Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Watts (rated) | 400 |
Battery volts | 12 |
Battery AH | 132 |
References | |
|---|---|
 | |
Fiat 45-76 55-76 60-76 70-76 80-76 (603.64.205.00) published in 1991 |
Engine
Engine Detail — 220.5 ci / 3.6 L Diesel
Manufacturer | Fiat 8045.06 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 220.5 ci
3.6 L |
Bore/Stroke | 3.94x4.53 inches
100 x 115 mm |
Power | 69.1 hp
51.5 kW |
Air cleaner | dry |
Compression | 17:1 |
Rated RPM | 2500 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Intake valve clearance | 0.010 inches (cold)
0.254 mm |
Exhaust valve clearance | 0.014 inches (cold)
0.356 mm |
Transmission
Transmission options | |
|---|---|
12-speed partially synchronized | |
12-speed mechanical shuttle | |
20-speed creeper shuttle |

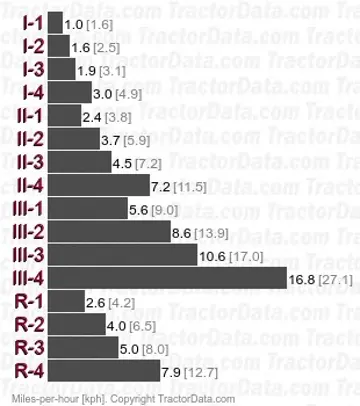

Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |
With 12.4-28 rear tires. | |
 | |

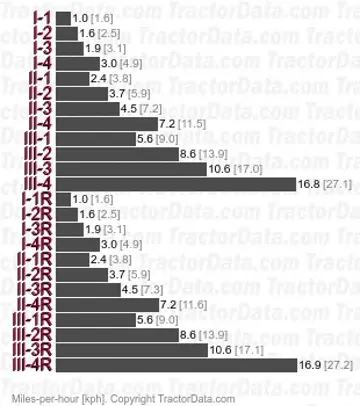

Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Clutch | 279.4mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser. | |
With 12.4-28 rear tires. | |
 | |
Transmission — 20 forward and 12 reverse creeper shuttle
Type | creeper shuttle |
Gears | 20 forward and 12 reverse |
Clutch | 254mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range. | |
With 12.4-28 rear tires. | |
 | |
Dimensions
Fiat 70-76 Tires | |
|---|---|
2WD O Standard tires (ag) | Front: 5.50-16. Rear: 12.4-28 |
2WD V Standard tires (ag) | Front: 6.00-16. Rear: 12.4-28 |
2WD LP Standard tires (ag) | Front: 6.50-16. Rear: 16.9-28 |
4WD F Standard tires (ag) | Front: 7.50-18. Rear: 12.4-28 |
4WD O Standard tires (ag) | Front: 10.5-18. Rear: 14.9/13-28 |
4WD LP Standard tires (ag) | Front: 11.2/10-20. Rear: 16.9/14-28 |
Dimensions | |
|---|---|
2WD Wheelbase | 78.8 inches
200 cm |
4WD Wheelbase | 83.1 inches
211 cm |
2WD Length | 121.7 inches
309 cm |
4WD Length | 126.4 inches
321 cm |
2WD Ground clearance | 17.1 inches
43 cm |
4WD Ground clearance | 11.8 inches
29 cm |
Fiat 70-76 Weight | |
|---|---|
2WD | 4782 lbs
2169 kg |
4WD | 5225 lbs
2370 kg |
2WD Ballasted | 5258 lbs
2385 kg |
4WD Ballasted | 5743 lbs
2605 kg |
Fiat 70-76 Height | |
|---|---|
2WD Steering wheel | 53.7 inches
136 cm |
4WD Steering wheel | 54.3 inches
137 cm |
2WD Hood | 48.4 inches
122 cm |
4WD Hood | 49 inches
124 cm |
2WD ROPS | 96.5 inches
245 cm |
4WD ROPS | 97.1 inches
246 cm |
Photos
Fiat 70-76 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 70-76 based on its 69.1 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 70-76.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 70-76 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 70-76.
Converted Equivalents:
Horsepower (HP)69.1 hp
Kilowatts (kW)51.5 kW
Metric Horsepower (PS / CV)70.1 PS
