Fiat 715
The Fiat 715 is a tractor produced by Fiat. It is equipped with a 268.3 ci 4.4 L engine. The listed engine power is Diesel (listed): 70 hp / 52.2 kW. Transmission: Amplicouple. Operating weight: 6393 to 7319 pounds.
Engine Power
Diesel (listed): 70 hp / 52.2 kW
Fuel & Capacities
Diesel
Transmission
Amplicouple
Operating Weight
6393 to 7319 pounds
Overview
 | 1967 - 1968
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Fiat 715 Engine | |
|---|---|
Fiat 4.4L 4-cyl diesel | |
Engine details ...  |
Fiat 715 Transmission | |
|---|---|
14-speed | |
Transmission details ...  |
Fiat 715 Power | |
|---|---|
Engine | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4409 lbs
1999 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
1000 (1.375) | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 86.6 inches
219 cm |
4WD Wheelbase | 81.9 inches
208 cm |
Weight | 6393 to 7319 pounds |
Front tire | 6.50-20 |
2WD Rear tire | 14-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 268.3 ci / 4.4 L Diesel
Manufacturer | Fiat |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 268.3 ci
4.4 L |
Bore/Stroke | 4.25x4.72 inches
108 x 120 mm |
Power | 70 hp
52.2 kW |
Fuel system | direct injection |
Rated RPM | 1900 |
Transmission
Transmission — Amplicouple
Transmission | Amplicouple |

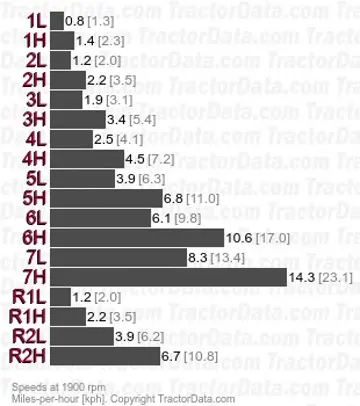

Gears | 14 forward and 4 reverse |
Seven gears forward, and two reverse, with two-speed power shift. | |
 | |
Dimensions
Fiat 715 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.50-20. Rear: 14-30 |
4WD Standard tires (ag) | Front: 10-24. Rear: 14-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 86.6 inches
219 cm |
4WD Wheelbase | 81.9 inches
208 cm |
Length | 149.6 inches
379 cm |
Ground clearance | 18.5 inches
46 cm |
2WD Front tread | 55.1 to 85 inches
139 to 215 cm |
4WD Front tread | 66.9 inches
169 cm |
Rear tread | 55.1 to 78.7 inches
139 to 199 cm |
Fiat 715 Weight | |
|---|---|
2WD | 6393 lbs
2899 kg |
4WD | 7319 lbs
3319 kg |
Ballasted | 7557 lbs
3427 kg |
Fiat 715 Height | |
|---|---|
2WD Hood | 60.2 inches
152 cm |
4WD Hood | 61.8 inches
156 cm |
Exhaust | 88.6 inches
225 cm |
Photos
Fiat 715 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 715 based on its 70 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 715.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 715 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 715.
Converted Equivalents:
Horsepower (HP)70 hp
Kilowatts (kW)52.2 kW
Metric Horsepower (PS / CV)71 PS
Direct Competitor Comparison
Compare Fiat 715 against same-era industry alternatives in the same horsepower class.
Current Model
Fiat
Fiat 715
Engine Power:Diesel (listed): 70 hp / 52.2 kW
★ Baseline Reference
