Fiat 850 Super
The Fiat 850 Super is a tractor produced by Fiat. It is equipped with a 301.5 ci 4.9 L engine. The listed engine power is Diesel (listed): 93.7 hp / 69.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 7496 to 8267 pounds.
Engine Power
Diesel (listed): 93.7 hp / 69.9 kW
Fuel & Capacities
22.7 gal
85.9 L
Transmission
16 forward and 4 reverse
Operating Weight
7496 to 8267 pounds
Overview
 | 1972 - 1974
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Row-Crop tractor | |
Variants | |
|---|---|
850 Super | two-wheel drive |
850DT Super | four-wheel drive |
Fiat 850 Super Engine | |
|---|---|
Fiat 4.9L 4-cyl diesel | |
Fuel tank | 22.7 gal
85.9 L |
Engine details ...  | |
Fiat 850 Super Power | |
|---|---|
Engine | 93.7 hp
69.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Open operator station. Four-post ROPS and cab available. |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5733 lbs
2600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 97.6 inches
247 cm |
4WD Wheelbase | 99.2 inches
251 cm |
Weight | 7496 to 8267 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 16.9/14-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 301.5 ci / 4.9 L Diesel
Manufacturer | Fiat OM CO3-80 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 301.5 ci
4.9 L |
Bore/Stroke | 4.33x5.12 inches
110 x 130 mm |
Power | 93.7 hp
69.9 kW |
Compression | 17:1 |
Rated RPM | 2100 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |

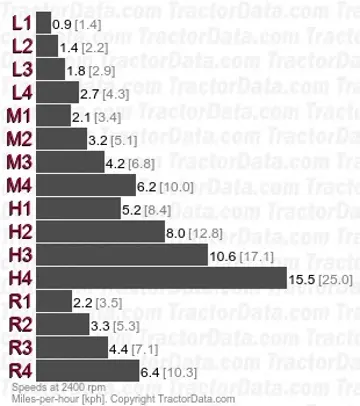

Transmission
Transmission options | |
|---|---|
12-speed | |
16-speed creeper |
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | 304.8mm dry disc |
Four gears in three ranges, plus reverse range. | |
With 16.9/14-38 rear tires. | |
 | |
Transmission — 16 forward and 4 reverse creeper
Type | creeper |
Gears | 16 forward and 4 reverse |
Optional creeper adds an additional range to the transmission. | |
With 16.9/14-38 rear tires. | |
 | |
Dimensions
Fiat 850 Super Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 16.9/14-38 |
4WD Standard tires (ag) | Front: 11.2/10-28. Rear: 16.9/14-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 97.6 inches
247 cm |
4WD Wheelbase | 99.2 inches
251 cm |
2WD Length | 164.2 inches
417 cm |
4WD Length | 166.9 inches
423 cm |
2WD Width | 76 inches
193 cm |
4WD Width | 82.3 inches
209 cm |
Height (ROPS) | 105.1 inches
266 cm |
2WD Weight | 7496 lbs
3400 kg |
4WD Weight | 8267 lbs
3749 kg |
2WD Ground clearance | 22.4 inches
56 cm |
4WD Ground clearance | 16.9 inches
42 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 850 Super based on its 93.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 850 Super.
Estimated Continuous Field Runtime: 4.7 hrs
Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (22.7 gal / 85.9 L).
Estimated 75% Load Fuel Burn~4.9 gal/hr (18.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 850 Super Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 850 Super.
Converted Equivalents:
Horsepower (HP)93.7 hp
Kilowatts (kW)69.9 kW
Metric Horsepower (PS / CV)95 PS
Direct Competitor Comparison
Compare Fiat 850 Super against same-era industry alternatives in the same horsepower class.
Current Model
Fiat
Fiat 850 Super
Engine Power:Diesel (listed): 93.7 hp / 69.9 kW
★ Baseline Reference
