Ford 1710

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

Distributor

Ford

Manufacturer

Shibaura

Compact Utility tractor

Built in Japan

Original price was $8,859 in 1986

1710 Offset

cultivating tractor

Shibaura 1.4L 3-cyl diesel

Engine (net)

26 hp 19.4 kW

PTO (claimed)

23.5 hp 17.5 kW

Drawbar (tested)

20.48 hp 15.3 kW

PTO (tested)

23.88 hp 17.8 kW

Two- or four-wheel drive

Final drives

spur gear

Differential lock

mechanical rear

2WD Steering

manual

4WD ((Optional with two-wheel drive.)) Steering

power

Differential mechanical drum brakes

Two-post fixed ROPS.

Fuel

7.7 gal 29.1 L

Hydraulic system

4.75 gal 18.0 L

Type

open center

Capacity

4.75 gal 18.0 L

Pressure

2130 psi 146.9 bar

Total flow

7.8 gpm 29.5 lpm

Rear Type

I

Rear lift (at 24"/610mm)

1575 lbs 714 kg

Rear PTO

transmission

live OptOptional

Rear PTO Type

540

Wheelbase

63 inches 160 cm

Weight

2425 to 2690 pounds

Front tire

5.00-15

2WD Rear tire

11.2-24

Ground

negative

Charging system

alternator

Charging amps

35

Charging volts

12

Battery volts

12

Battery AH

72

Ford Shop Manual by Peter Letourneau

Farm Loaders published in 1988, by Ford

1000 Series Tractors published in 1985, by Ford

1000 Series Tractors published in 1987, by Ford

Salesman's Reference published in 1986, by Ford

Repair Manual 1010 Series Tractors (SE 4301) published in 1986

Sales Reference Guide published in 1986, by Ford

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

Manufacturer

Shibaura H843

Fuel Type

Diesel

Configuration

3-cylinder, liquid-cooled inline

Displacement

85.2 ci 1.4 L

Bore/Stroke

3.31x3.31 inches 84 x 84 mm

Power (net)

26 hp 19.4 kW

Fuel use

1.873 gal/hour 7.1 l/hour

Air cleaner

dry

Pre-heating

glow plugs

Compression

23:1

Rated RPM

2700

Idle RPM

750-2875

Torque

55.7 lb-ft 75.5 Nm

Torque RPM

1500

Firing order

1-2-3

Starter volts

12

Oil capacity

5.6 qts 5.3 L

Coolant capacity

4.2 qts 4.0 L

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

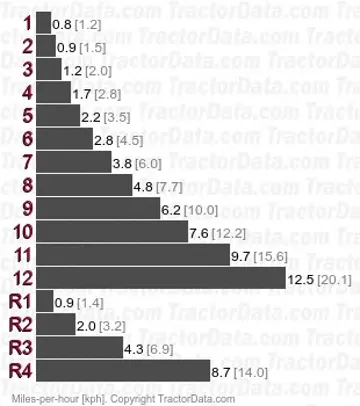

12-speed unsynchronized gear

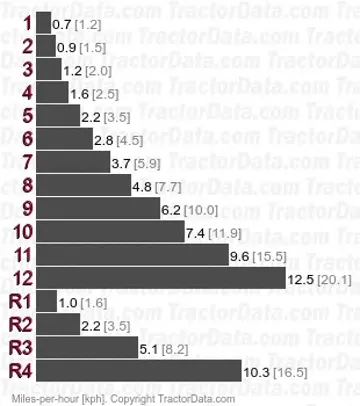

12-speed partially synchronized

Type

unsynchronized gear

Gears

12 forward and 4 reverse

Clutch

216mm dry disc

Oil capacity

19 qts 18.0 L

Three gears, plus reverse, in four ranges.

Type

partially synchronized

Gears

12 forward and 4 reverse

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

2WD Standard tires (ag)

Front: 5.00-15. Rear: 11.2-24

4WD Standard tires (ag)

Front: 6.00-16. Rear: 11.2-24

2WD Lawn/turf front

23x8.50-12

4WD Lawn/turf front

27x8.50-15

Lawn/turf rear

13.6x16

Wheelbase

63 inches 160 cm

Length

117.5 inches 298 cm

Width

54.7 inches 138 cm

Ground clearance

13.9 inches 35 cm

2WD Front tread

43.5 to 57.5 inches 110 to 146 cm

4WD Front tread

45.3 inches 115 cm

Rear tread

43.3 to 58.7 inches 109 to 149 cm

2WD

2470 lbs 1120 kg

4WD

2690 lbs 1220 kg

Operating

2425 lbs 1099 kg

Ballasted

3510 lbs 1592 kg

2WD Steering wheel

57.3 inches 145 cm

4WD Steering wheel

57.9 inches 147 cm

ROPS

84.8 inches 215 cm

2WD Exhaust

73.3 inches 186 cm

4WD Exhaust

74.5 inches 189 cm

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

NTTL 1502: diesel 12/4 gear 2WD

NTTL 1503: diesel 12/4 synchro 2WD

Diesel 12/4 gear 2WD October 17 - 31, 1983 Link: Nebraska Tractor Test 1502 file

PTO performance

Power at rated engine speed

23.88 hp 17.8 kW

Fuel use

1.9 gal/hour 7.2 l/hour

Power at rated PTO speed

22.19 hp 16.5 kW

Fuel use

1.7 gal/hour 6.4 l/hour

Drawbar performance

Max power

19.98 hp 14.9 kW

Fuel use

1.8 gal/hour 6.8 l/hour

Gear 3-3 used for power test.

Max pull

2,700 lbs 1224 kg

Gear 2-3 used for pull test.

Diesel 12/4 synchro 2WD October 17 - 31, 1983 Link: Nebraska Tractor Test 1503 file

PTO performance

Power at rated engine speed

23.79 hp 17.7 kW

Fuel use

1.9 gal/hour 7.2 l/hour

Power at rated PTO speed

22.34 hp 16.7 kW

Fuel use

1.7 gal/hour 6.4 l/hour

Drawbar performance

Max power

20.48 hp 15.3 kW

Fuel use

1.9 gal/hour 7.2 l/hour

Gear 3-3 used for power test.

Max pull

2,680 lbs 1215 kg

Gear 2-3 used for pull test.

1983 - 1986

Ten Compact Series

Compact Utility tractor

Shibaura built

Ten Compact Series

Compact Utility tractor

Shibaura built

60" mid-mount mower deck

Snowblower

Ford 770A loader

Ford 770B loader

Backhoe

In addition to the mid-mount mowing deck, the Ford 1710 was matched for the 930A rear finish mower in 59 or 72 inch widths. It could also use the 939 and 940 60-inch rotary cutters, and the 917 flail mowers (62 or 74 inch). In addition to a loader and backhoe, the model 706 10-cubic-foot rear scoop was available. Up to 72-inch front blades and 84-inch rear blades could be fitted on the 1710, and a 72-inch landscape rake. Rear tillers were available in 48 and 54-inch widths. Ford listed two-bottom plows, 82-inch disc harrows, and 72-inch cultivators as matched equipment.

Type

mid-mount Ford 915

3-blade

Cutting width

60 inches 152 cm

Backhoe type

Ford 757A Backhoe

Bucket width

8 inches 20 cm

13 inches 33 cm

16 inches 40 cm

Digging depth

76.5 inches 194 cm

2-Foot flat digging depth

74.5 inches 189 cm

8-Foot flat digging depth

40.3 inches 102 cm

Reach from pivot

107 inches 271 cm

Loading height

70 inches 177 cm

Dipperstick force

719 lbs 326 kg

Backhoe type

Ford 758A Backhoe

Bucket width

8 inches 20 cm

13 inches 33 cm

16 inches 40 cm

Digging depth

96 inches 243 cm

2-Foot flat digging depth

94 inches 238 cm

8-Foot flat digging depth

56 inches 142 cm

Reach from pivot

140.4 inches 356 cm

Loading height

83.6 inches 212 cm

Dipperstick force

726 lbs 329 kg
