Ford TW-10
The Ford TW-10 is a tractor produced by Ford. It is equipped with a 401 ci 6.6 L engine. The rated power output is 123 hp 91.7 kW. Transmission: Dual Power. Operating weight: 11250 to 12865 pounds.
Engine Power
123 hp
91.7 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
Dual Power
Operating Weight
11250 to 12865 pounds
Ford TW-10 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1979 - 1983
TW SeriesRow-Crop tractor |
|---|---|
1979 - 1983 | |
TW Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Ford |
Row-Crop tractor | |
Built in Romeo, Michigan, USA | |
Original price | $36,160 |
Ford TW-10 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Engine details ...  |
Ford TW-10 Power | |
|---|---|
Engine (gross) | 127.9 hp
95.4 kW |
Engine | 123 hp
91.7 kW |
Drawbar (claimed) | 97.4 hp
72.6 kW |
PTO (claimed) | 110 hp
82.0 kW |
Drawbar (tested) | 94.34 hp
70.3 kW |
PTO (tested) | 110.24 hp
82.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet discs brakes | |
Cab optional with available air-conditioning. | |
Capacity | |
|---|---|
Fuel | 33 gal
124.9 L |
25 gal (auxiliary tank)
94.6 L | |
Hydraulic system | 18.25 gal
69.1 L |
19.75 gal (Dual Power)
74.8 L | |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 18.25 gal
69.1 L |
19.75 gal (Dual Power)
74.8 L | |
Pressure | 2500 psi
172.4 bar |
Pump flow | 16 gpm
60.6 lpm |
8 gpm (service pump)
30.3 lpm | |
Steering flow | 4.2 gpm
15.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 6,000 lbs
2721 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 109.7 inches
278 cm |
94 inches (short)
238 cm | |
Weight | 11250 to 12865 pounds |
Front tire | 10.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 72 |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
9400 Series published in 1991, by AGCO | |
Farm Loaders published in 1982, by Ford | |
TW-10, TW-20, TW-30 published by Ford | |
Operator's Manual TW-10, TW-20, & TW-30 (SE 3967) published in 1978 |
Engine
Engine Detail — 401 ci / 6.6 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 401 ci
6.6 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power | 123 hp
91.7 kW |
Power (gross) | 127.9 hp
95.4 kW |
Air cleaner | dry with precleaner |
Compression | 16.3:1 |
Rated RPM | 2300 |
Torque | 314 lb-ft
425.8 Nm |
Torque RPM | 1800 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Coolant capacity | 21 qts
19.9 L |
22.5 qts (with heater)
21.3 L | |
Intake valve clearance | 0.014-0.016 inches
0.356 mm |
Exhaust valve clearance | 0.017-0.019 inches
0.432 mm |
Oil capacity | 20 qts
18.9 L |
Transmission
Transmission options | |
|---|---|
16-speed | |
8-speed |

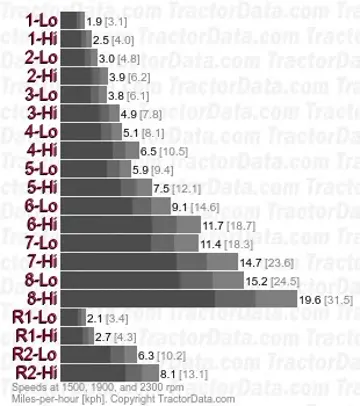

Transmission — Dual Power
Transmission | Dual Power |
Gears | 16 forward and 4 reverse |
Clutch | 330mm cerametallic disc |
Oil capacity | 79 qts
74.8 L |
The Dual Power pedal is located to the right of the clutch pedal. Pushing heel-down on the pedal engages an underdrive. The Dual Power may be shifted on the move. | |
18.4x38 rear tires. | |
 | |
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Clutch | 330mm cerametallic disc |
Oil capacity | 73 qts
69.1 L |
Left lever selects high, low, or park. Right lever selects one of four forward gears or reverse. Tractor must be stopped before changing gears. | |
18.4x38 rear tires. | |
 | |
Dimensions
Ford TW-10 Tires | |
|---|---|
Ag front | 10.00-16 (2WD) |
Ag rear | 18.4-38 |
Ag front | 7.50-18 (2WD) |
14L-16.1 (2WD) | |
18.4-16.1 (2WD) | |
14.9-24 (4WD) | |
14.9-28 (4WD) | |
Ag rear | 18.4-34 |
24.5-32 | |
20.8-38 | |
Dimensions | |
|---|---|
Wheelbase | 109.7 inches
278 cm |
94 inches (short)
238 cm | |
Length | 175.6 inches
446 cm |
Width | 104.32 inches
264 cm |
Ground clearance | 25.2 inches (2WD)
64 cm |
16 inches (4WD)
40 cm | |
Bar rear axle | 84 inch length
2133 mm |
Bar rear axle | 105 inch length
2667 mm |
Front tread | 60 to 84 inches
152 to 213 cm |
Rear tread | 60 to 90 inches
152 to 228 cm |
Rear tread | 60 to 110 inches
152 to 279 cm |
Ford TW-10 Weight | |
|---|---|
Shipping | 11,250 lbs
5103 kg |
11,850 lbs (cab)
5375 kg | |
Operating | 12,865 lbs (cab and duals)
5835 kg |
Ballasted | 15,190 lbs
6890 kg |
Ford TW-10 Height | |
|---|---|
Hood | 80 inches
203 cm |
ROPS | 112.7 inches
286 cm |
Cab | 116 inches
294 cm |
Exhaust | 126.3 inches
320 cm |
Tests
Nebraska Tractor Test 1301 | |
|---|---|
Diesel 16-speed 2WD
March 22 - April 9, 1979
Link: Nebraska Tractor Test 1301 file | |
PTO performance | |
Power at rated engine speed | 110.24 hp
82.2 kW |
Fuel use | 7.7 gal/hour
29.1 l/hour |
Power at rated PTO speed | 101.09 hp
75.4 kW |
Fuel use | 6.8 gal/hour
25.7 l/hour |
Drawbar performance | |
Max power | 94.34 hp
70.3 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Gear 5PD used for power test. | |
Max pull | 12,006 lbs
5445 kg |
Gear 2PD used for pull test. | |
Photos
Ford TW-10, left side.
