Ford LT-80
The Ford LT-80 is a tractor produced by Ford Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 430 lbs 195 kg.
Engine Power
8 hp
6.0 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
3 forward and 1 reverse
Operating Weight
430 lbs
195 kg
Ford Lawn Tractors Ford LT-80 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1977 - 1981
Lawn tractorJacobsen built |
|---|---|
1977 - 1981 | |
Lawn tractor | |
Jacobsen built | |
1977 - 1981 | |
|---|---|
Lawn tractor | |
Jacobsen built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Lawn tractor | |
Variants | |
|---|---|
80 | similar Jacobsen model |
Ford LT-80 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Ford LT-80 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 430 lbs
195 kg |
Front tire | 13x5.00 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 22 |
References | |
|---|---|
 | |
Lawn and Garden Tractors published in 1978, by Ford | |
Lawn and Garden Tractors published in 1979, by Ford | |
Consumer Products Salesman's Reference published in 1980, by Ford | |
Lawn and Garden Tractor Attachments published in 1977, by Ford |
Engine
| 1977 - 1981
Lawn tractorJacobsen built |
|---|---|
1977 - 1981 | |
Lawn tractor | |
Jacobsen built | |
1977 - 1981 | |
|---|---|
Lawn tractor | |
Jacobsen built |
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
| 1977 - 1981
Lawn tractorJacobsen built |
|---|---|
1977 - 1981 | |
Lawn tractor | |
Jacobsen built | |
1977 - 1981 | |
|---|---|
Lawn tractor | |
Jacobsen built |
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | mechanical pulley |
 | |
Dimensions
| 1977 - 1981
Lawn tractorJacobsen built |
|---|---|
1977 - 1981 | |
Lawn tractor | |
Jacobsen built | |
1977 - 1981 | |
|---|---|
Lawn tractor | |
Jacobsen built |
Ford LT-80 Tires | |
|---|---|
Lawn/turf front | 13x5.00 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 58 inches
147 cm |
Width | 37 inches
93 cm |
Height | 32 inches
81 cm |
Weight | 430 lbs
195 kg |
Clearance (front axle) | 7 inches
17 cm |
Clearance (rear axle) | 5.5 inches
13 cm |
Attachments
| 1977 - 1981
Lawn tractorJacobsen built |
|---|---|
1977 - 1981 | |
Lawn tractor | |
Jacobsen built | |
1977 - 1981 | |
|---|---|
Lawn tractor | |
Jacobsen built |
34" Mower deck | |
|---|---|
Type | mid-mount Ford |
Cutting width | 34 inches
86 cm |
Photos

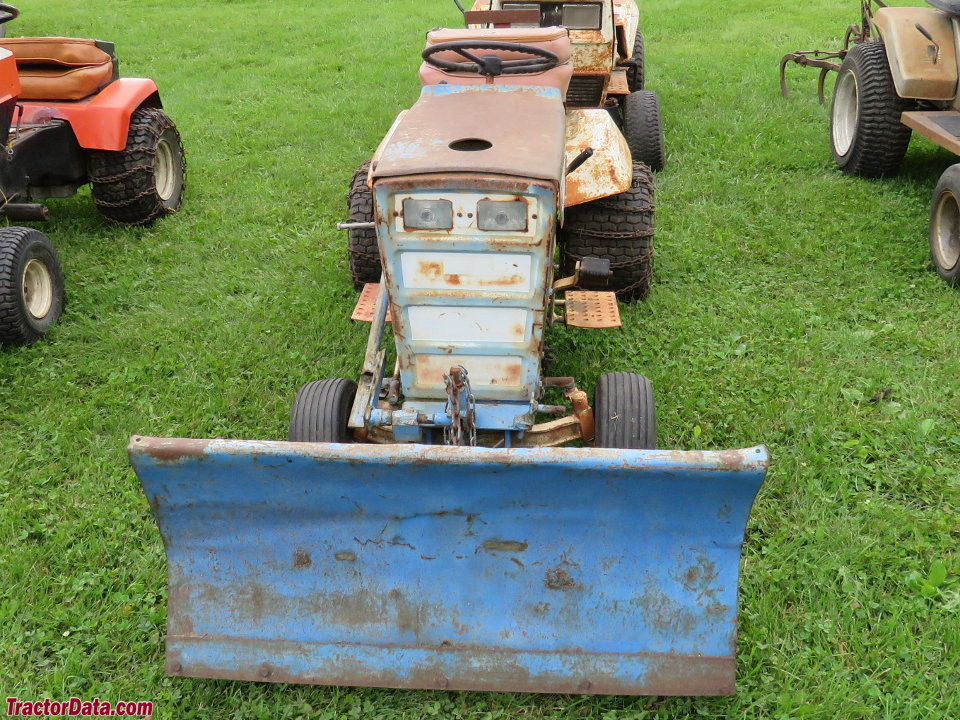

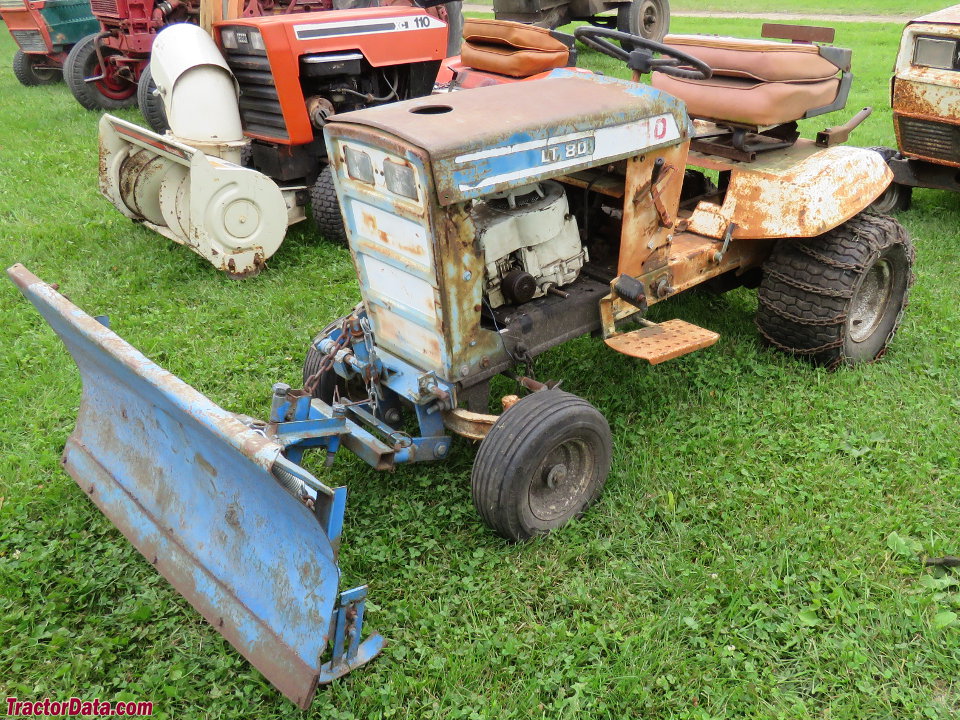

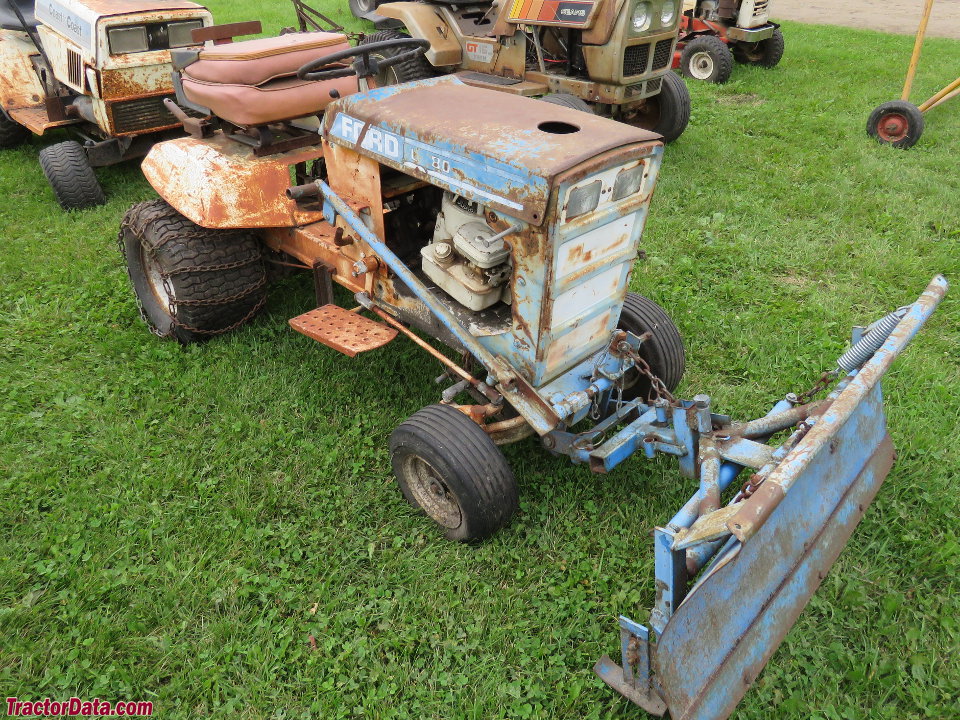

Ford LT-80
Ford LT-80
Ford LT-80

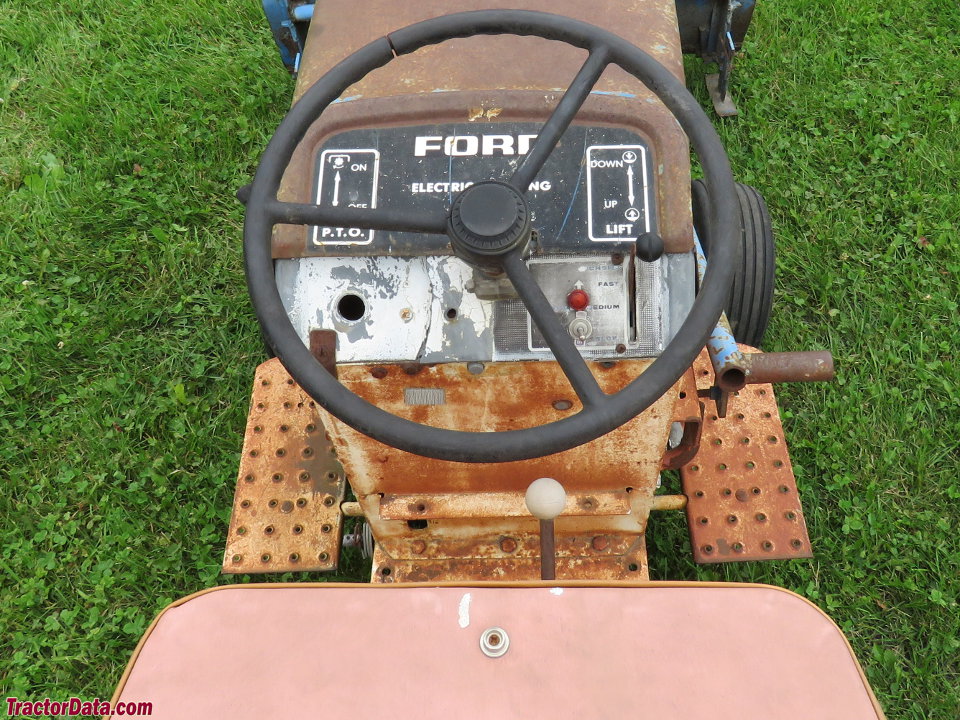

Ford LT-80 operator station and controls.
