Ford T-800 53055
The Ford T-800 53055 is a tractor produced by Ford Lawn Tractors. It is equipped with a 305 cc 18.64 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: 6 forward and 2 reverse. Operating weight: 465 lbs 210 kg.
Engine Power
8 hp
6.0 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
6 forward and 2 reverse
Operating Weight
465 lbs
210 kg
Ford Lawn Tractors Ford T-800 53055 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1965
Garden tractorJacobsen built |
|---|---|
1965 | |
Garden tractor | |
Jacobsen built | |
1965 | |
|---|---|
Garden tractor | |
Jacobsen built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Garden tractor | |
Ford T-800 Engine | |
|---|---|
8HP Kohler 305cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Ford T-800 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 465 lbs
210 kg |
Front tire | 4.80-8 |
Rear tire | 6-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1965
Garden tractorJacobsen built |
|---|---|
1965 | |
Garden tractor | |
Jacobsen built | |
1965 | |
|---|---|
Garden tractor | |
Jacobsen built |
Engine Detail — 305 cc / 18.64 ci Gasoline
Manufacturer | Kohler K181S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 305 cc
18.64 ci |
Bore/Stroke | 2.9375x2.75 inches
75 x 70 mm |
Power | 8 hp
6.0 kW |
Fuel system | carburetor |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.25 qts
1.2 L |
Transmission
| 1965
Garden tractorJacobsen built |
|---|---|
1965 | |
Garden tractor | |
Jacobsen built | |
1965 | |
|---|---|
Garden tractor | |
Jacobsen built |
Transmission — 6 forward and 2 reverse belt-driven gear
Type | belt-driven gear |
Gears | 6 forward and 2 reverse |
 | |
Dimensions
| 1965
Garden tractorJacobsen built |
|---|---|
1965 | |
Garden tractor | |
Jacobsen built | |
1965 | |
|---|---|
Garden tractor | |
Jacobsen built |
Ford T-800 Tires | |
|---|---|
Lawn/turf front | 4.80-8 |
Lawn/turf rear | 6-12 |
Lawn/turf front | 6.50-8 |
Lawn/turf rear | 8-12 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 61 inches
154 cm |
Width | 33 inches
83 cm |
Height (steering wheel) | 38 inches
96 cm |
Height (hood) | 34.5 inches
87 cm |
Weight | 465 lbs
210 kg |
Clearance (front axle) | 8.75 inches
22 cm |
Clearance (rear axle) | 7 inches
17 cm |
Attachments
| 1965
Garden tractorJacobsen built |
|---|---|
1965 | |
Garden tractor | |
Jacobsen built | |
1965 | |
|---|---|
Garden tractor | |
Jacobsen built |
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
36" Mower deck | |
|---|---|
Type | mid-mount Ford |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

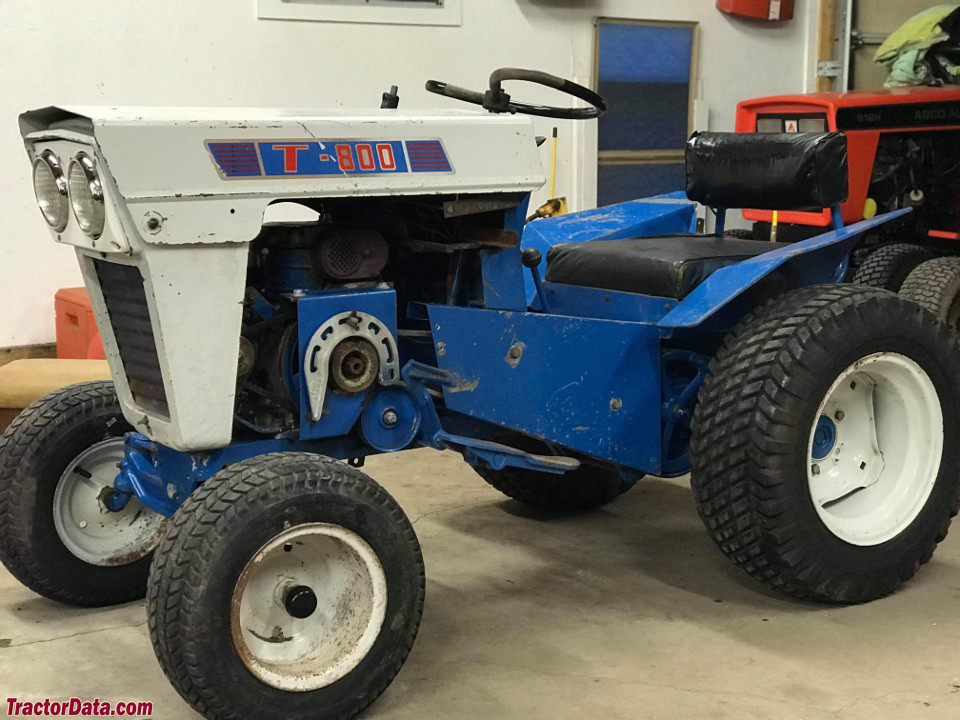

Ford T-800 53055
