Fordson Fordson N

The Fordson Fordson N is a tractor produced by Fordson. It is equipped with a 267 ci 4.4 L engine. The listed engine power is Kerosene (listed): 21 hp / 15.7 kW; Gasoline (listed): 26 hp / 19.4 kW. Transmission: 3 forward and 1 reverse. Operating weight: 3600 lbs 1632 kg.

Overview

	1929 - 1945 Standard-tread tractor

Production
Manufacturer	Fordson (a part of Ford)
Standard-tread tractor
Factories	Cork, Ireland
	Dagenham, England
Original price	GPB156 (1935 steel )
	GBP245 (1935 rubber )

Fordson Fordson N Transmission
3-speed gear
Transmission details ...

Fordson Fordson N Power
Engine	26 hp 19.4 kW
Drawbar (claimed)	15 hp 11.2 kW
Plows	2 *14-inch
Drawbar (tested)	18.30 hp 13.6 kW
Belt (tested)	29.09 hp 21.7 kW
Performance test details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	3600 lbs 1632 kg
Rear tire	42x12
Full dimensions and tires ...

Electrical
Charging system	Bosch magneto

Engine

Engine options
Ford 4.4L 4-cyl kerosene
Ford 4.4L 4-cyl gasoline

Engine Detail — 267 ci / 4.4 L Kerosene

Manufacturer	Ford
Fuel Type	Kerosene
Configuration	4-cylinder, liquid-cooled
Displacement	267 ci 4.4 L
Bore/Stroke	4.125x5.00 inches 105 x 127 mm
Power	21 hp 15.7 kW
Rated RPM	1100
Firing order	1-2-4-3
Starter type	hand-crank

Engine Detail — 267 ci / 4.4 L Gasoline

Manufacturer	Ford
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	267 ci 4.4 L
Bore/Stroke	4.125x5.00 inches 105 x 127 mm
Power	26 hp 19.4 kW
Fuel system	Zenith IN5F carburetor
Rated RPM	1100
Firing order	1-2-4-3
Starter type	hand-crank

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse

Dimensions

Fordson Fordson N Tires
Ag rear	42x12 steel

Dimensions
Wheelbase	63 inches 160 cm
Length	102 inches 259 cm
Width	63 inches 160 cm
Height	55.1 inches 139 cm
Weight	3600 lbs 1632 kg

Tests

Tractor Tests
NTTL 173: kerosene 3-speed 2WD
NTTL 174: gasoline 3-speed 2WD

Nebraska Tractor Test 173
Kerosene 3-speed 2WD March 11 - April 8, 1930 Link: Nebraska Tractor Test 173 file
Belt power (max)	23.24 hp 17.3 kW
Belt fuel use (max)	3.3 gal/hour 12.5 l/hour
Drawbar performance
Max power	13.60 hp 10.1 kW
Gear 1 used for power test.
Max pull	3,289 lbs 1491 kg
Gear 1 used for pull test.

Nebraska Tractor Test 174
Gasoline 3-speed 2WD March 20 - April 10, 1930 Link: Nebraska Tractor Test 174 file
Belt power (max)	29.09 hp 21.7 kW
Belt fuel use (max)	3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power	18.30 hp 13.6 kW
Gear 2 used for power test.
Max pull	3,202 lbs 1452 kg
Gear 1 used for pull test.

Photos

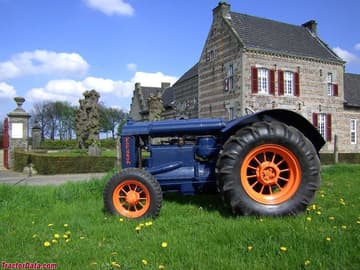

Left-side profile of a 1933 Fordson model N.

Fordson model N front view

Fordson model N, right side.
