General Electric E8M Elec-Trak

The General Electric E8M Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 495 lbs 224 kg.

Overview

Production
Manufacturer	General Electric
Built in Scotia, New York, USA

General Electric E8M Engine
8HP General Electric electric
Engine details ...

General Electric E8M Transmission
3-speed
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station.

Dimensions & Tires
Weight	495 lbs 224 kg
Front tire	5.00x6
Rear tire	6.50x8
Full dimensions and tires ...

References
Elec-Trak published in 1969, by General Electric

Engine

Manufacturer	General Electric
electric
Power	8 hp 6.0 kW

Transmission

Transmission — 3 forward and 1 reverse

Gears

3 forward and 1 reverse

Dimensions

General Electric E8M Tires
Lawn/turf front	5.00x6
Lawn/turf rear	6.50x8

Dimensions
Length	67 inches 170 cm
Width	35 inches 88 cm
Weight	495 lbs 224 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Brinley-Hardy offered an electric 30-inch rear-mount tiller, model VV-100.

36" Mower deck
Type	mid-mount General Electric
Cutting width	36 inches 91 cm
Cut height	1.5 to 3 inch 3 to 7 cm

Photos

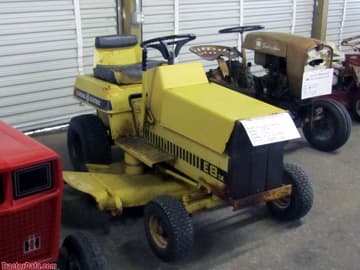

General Electric E8M Elec-Trak

General Electric E8M Elec-Trak

General Electric E8M Elec-Trak
