General Electric E10M Elec-Trak

The General Electric E10M Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 745 lbs 337 kg.

Overview

	Garden tractor	Garden tractor

Production
Manufacturer	General Electric
Garden tractor
Built in Scotia, New York, USA

General Electric E10M Engine
10HP General Electric electric
Engine details ...

General Electric E10M Transmission
3-speed
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station

Dimensions & Tires
Weight	745 lbs 337 kg
Front tire	3.50x6
Rear tire	9.50x8
Full dimensions and tires ...

References
Elec-Trak published in 1969, by General Electric

Engine

Manufacturer	General Electric
electric
Power	10 hp 7.5 kW

Transmission

Transmission — 3 forward and 1 reverse

Gears

3 forward and 1 reverse

Dimensions

General Electric E10M Tires
Lawn/turf front	3.50x6
Lawn/turf rear	9.50x8

Dimensions
Length	67 inches 170 cm
Width	36 inches 91 cm
Weight	745 lbs 337 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

36" Mower deck
Type	mid-mount General Electric
Cutting width	36 inches 91 cm
Cut height	1.5 to 3 inch 3 to 7 cm

Photos

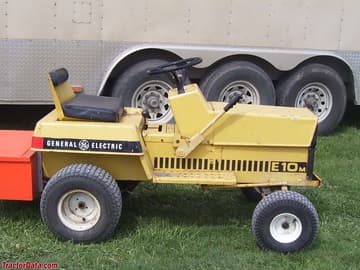

General Electric E10M Elec-Trak

General Electric E10M Elec-Trak

Elec-Trak E10M operator station and controls.
