General Electric E14 Elec-Trak

The General Electric E14 Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (4-range). Operating weight: 800 lbs 362 kg.

Overview

	1973 - 1974 Garden tractor

Production
Manufacturer	General Electric
Garden tractor
Built in Scotia, New York, USA
Original price was $1,585 in 1973

General Electric E14 Engine
14HP General Electric electric
Engine details ...

General Electric E14 Transmission
electric drive
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Dimensions & Tires
Weight	800 lbs 362 kg
Front tire	4.80x8
Rear tire	8.50x12
Full dimensions and tires ...

References
Elec-Trak owner's use and care manual (GEZ-5919)

Engine

Manufacturer	General Electric
electric
Power	14 hp 10.4 kW

Transmission

Transmission — infinite forward and reverse (4-range) electric drive

Type	electric drive
Gears	infinite forward and reverse (4-range)
Oil capacity	3 qts 2.8 L
Oil type	EP90

Dimensions

General Electric E14 Tires
Lawn/turf front	4.80x8
Lawn/turf rear	8.50x12

Dimensions
Length	69 inches 175 cm
Width	35 inches 88 cm
Height	42 inches 106 cm
Weight	800 lbs 362 kg

Attachments

Attachment overview
42" front-mount mower deck
Snowblower
Blade
Front-end loader
Brinley-Hardy offered an electric 30-inch rear-mount tiller, model VV-100.

42" Mower deck
Type	front-mount General Electric
	3-blade with electric lift
Cutting width	42 inches 106 cm

Photos

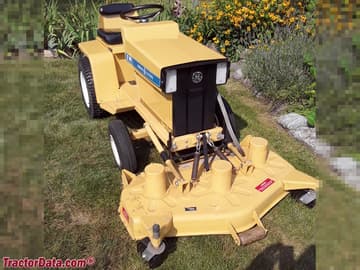

General Electric E14 Elec-Trak
