gravely lawn tractors 432
 | 1967 - 1972
400 SeriesGarden tractor | 1967 - 1972 | 400 Series | Garden tractor |
|---|---|---|---|---|
1967 - 1972 | ||||
400 Series | ||||
Garden tractor | ||||
1967 - 1972 | |
|---|---|
400 Series | |
Garden tractor |
Engine Detail | |
|---|---|
Kohler K321 | |
gasoline | |
1-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.25x3.50 inches
83 x 89 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | single dry element |
Rated RPM | 3600 |
Starter volts | 12 |
Sparkplug | Champion H-10 |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.009 inches (cold)
0.229 mm |
Exhaust valve clearance | 0.018 inches (cold)
0.457 mm |

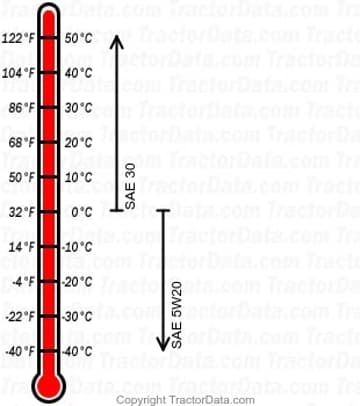

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.5 qts
2.4 L |
