Hinomoto C172

The Hinomoto C172 is a tractor produced by Hinomoto. It is equipped with a 61.27 ci 1.0 L engine. The listed engine power is Diesel (net): 17.8 hp / 13.3 kW; Diesel (gross): 19.7 hp / 14.7 kW; Diesel (listed): 1.07 hp / 0.8 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1280 lbs 580 kg.

Engine Power
Diesel (net): 17.8 hp / 13.3 kW; Diesel (gross): 19.7 hp / 14.7 kW; Diesel (listed): 1.07 hp / 0.8 kW
Fuel & Capacities
3.7 gal 14.0 L
Transmission
9 forward and 3 reverse
Operating Weight
1280 lbs 580 kg

Overview

Hinomoto C172 tractor photo
1980 - 1985 Concord SeriesCompact Utility tractor Concord Series Compact Utility tractor
Production
Manufacturer
Hinomoto
Compact Utility tractor
Built in Japan
Variants
C172
2WD
C174
4WD
Hinomoto C172 Engine
Toyosha 1.0L 3-cyl diesel
Fuel tank
3.7 gal 14.0 L
Engine details ...
Hinomoto C172 Transmission
9-speed synchronized
Transmission details ...
Hinomoto C172 Power
Engine (gross)
19.7 hp 14.7 kW
Engine (net)
17.8 hp 13.3 kW
PTO (claimed)
14.8 hp 11.0 kW
Mechanical
Two-wheel drive
Differential lock
mechanical rear
Manual steering
Drum brakes
Open operator station.
Hydraulics
Type
open center
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
50.8 inches 129 cm
Weight
1280 lbs 580 kg
Front tire
4-12
Rear tire
8-18
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Charging amps
12.5
Battery volts
12
References
C172 references literature
C172/C174 published in 1981, by Hinomoto

Engine

Engine Detail — 61.27 ci / 1.0 L Diesel

Manufacturer
Toyosha CS100
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
61.27 ci 1.0 L
Bore/Stroke
2.874x3.15 inches 73 x 80 mm
Power (net)
17.8 hp 13.3 kW
Power (gross)
19.7 hp 14.7 kW
Rated RPM
2500
Torque
40.5 lb-ft 54.9 Nm
Torque RPM
1800
Starter
electric
Starter volts
12
Starter power
1.07 hp 0.8 kW
Oil capacity
2.3 qts 2.2 L
Coolant capacity
3.2 qts 3.0 L

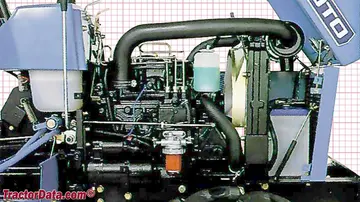

Hinomoto C172 Engine
Hinomoto C172 engine image

Transmission

Transmission — 9 forward and 3 reverse synchronized

Type
synchronized
Gears
9 forward and 3 reverse
Clutch
dry disc
Oil capacity
18 qts 17.0 L

Dimensions

Hinomoto C172 Tires
Ag front
4-12
Ag rear
8-18
Lawn/turf front
20.5x8.00-10
Lawn/turf rear
29x12.00-15
Dimensions
Wheelbase
50.8 inches 129 cm
Length
82.7 inches 210 cm
Width
40.75 inches 103 cm
Height (steering wheel)
47.2 inches 119 cm
Weight
1280 lbs 580 kg
Ground clearance
11.4 inches 28 cm

Photos

Hinomoto C172

Hinomoto C172

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Hinomoto C172.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Hinomoto C172 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Hinomoto C172.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
