Hinomoto E2802
The Hinomoto E2802 is a tractor produced by Hinomoto. It is equipped with a 91.4 ci 1.5 L engine. The listed engine power is Diesel (gross): 35 hp / 26.1 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2755 lbs 1249 kg.
Engine Power
Diesel (gross): 35 hp / 26.1 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
12 forward and 4 reverse
Operating Weight
2755 lbs
1249 kg
Overview
 | 1982 - 1992
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Hinomoto |
Compact Utility tractor | |
Built in Japan | |
Variants | |
|---|---|
E2802 | 2WD |
E2804 | 4WD |
Hinomoto E2802 Engine | |
|---|---|
Toyosha 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Hinomoto E2802 Transmission | |
|---|---|
12-speed synchromesh | |
Transmission details ...  |
Hinomoto E2802 Power | |
|---|---|
Engine (gross) | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Clutch | overrunning dry disc |
Rear PTO Type | 540 (1.375) |
Engine RPM | 604@2600 |
1015@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.3 inches
170 cm |
Weight | 2755 lbs
1249 kg |
Front tire | 5.00-15 |
Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
E2802/E2804 published in 1983, by Hinomoto |
Engine
Engine Detail — 91.4 ci / 1.5 L Diesel
Manufacturer | Toyosha 3S150 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled inline |
Displacement | 91.4 ci
1.5 L |
Bore/Stroke | 3.39x3.39 inches
86 x 86 mm |
Power (gross) | 35 hp
26.1 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 23:1 |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 4.2 qts
4.0 L |
Coolant capacity | 7.4 qts
7.0 L |
Transmission

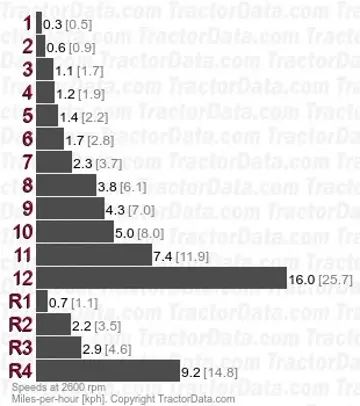

Transmission — 12 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 29.6 qts
28.0 L |
With 12.4-24 rear tires. | |
 | |
Dimensions
Hinomoto E2802 Tires | |
|---|---|
Standard tires (ag) | Front: 5.00-15. Rear: 12.4-24 |
Dimensions | |
|---|---|
Wheelbase | 67.3 inches
170 cm |
Length | 111.2 inches
282 cm |
Width | 55.3 inches
140 cm |
Height (steering wheel) | 58.2 inches
147 cm |
Height (exhaust) | 76 inches
193 cm |
Weight | 2755 lbs
1249 kg |
Clearance (front axle) | 14.4 inches
36 cm |
Front tread | 44.9 to 57.7 inches
114 to 146 cm |
Rear tread | 43.1 to 64.6 inches
109 to 164 cm |
Photos
Hinomoto E2802 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Hinomoto E2802 based on its 35 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hinomoto E2802.
Estimated Continuous Field Runtime: 3.9 hrs
Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hinomoto E2802 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hinomoto E2802.
Converted Equivalents:
Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
Direct Competitor Comparison
Compare Hinomoto E2802 against same-era industry alternatives in the same horsepower class.
Current Model
Hinomoto
Hinomoto E2802
Engine Power:Diesel (gross): 35 hp / 26.1 kW
★ Baseline Reference
