Hinomoto N249

The Hinomoto N249 is a tractor produced by Hinomoto. Transmission: 16 forward and reverse.

Fuel & Capacities
8.5 gal 32.2 L
Transmission
16 forward and reverse

Overview

Hinomoto N249 tractor photo
1988 - 1992 Compact Utility tractor
Production
Manufacturer
Hinomoto
Compact Utility tractor
Built in Japan
Hinomoto N249 Engine
Toyosha 3-cyl diesel
Engine details ...
Hinomoto N249 Transmission
16-speed shuttle
Transmission details ...
Hinomoto N249 Power
PTO (claimed)
28 hp 20.9 kW
Mechanical
Four-wheel drive
Power steering
Capacity
Fuel
8.5 gal 32.2 L
Steering
0.9 qts 0.9 L
Dimensions & Tires
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — Diesel

Manufacturer
Toyosha
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Starter volts
12
Coolant capacity
5.9 qts 5.6 L
Oil capacity
5.8 qts 5.5 L
Oil change
200 h

Transmission

Transmission — 16 forward and reverse shuttle

Type
shuttle
Gears
16 forward and reverse
Oil capacity
37 qts 35.0 L
Four gears in four ranges.

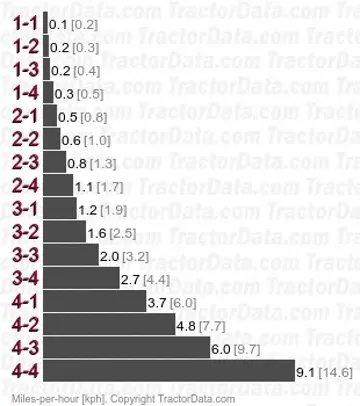

N249 shuttle speeds

Dimensions

Hinomoto N249 Tires
Dimensions

Photos

Hinomoto N249

Hinomoto N249

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Hinomoto N249.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Hinomoto N249 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Hinomoto N249.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
