Hinomoto E382
The Hinomoto E382 is a tractor produced by Hinomoto. It is equipped with a 118.6 ci 1.9 L engine. The rated power output is 37.5 hp 28.0 kW. Transmission: 24 forward and 8 reverse. Operating weight: 3494 lbs 1584 kg.
Engine Power
37.5 hp
28.0 kW
Fuel & Capacities
8.5 gal
32.2 L
Transmission
24 forward and 8 reverse
Operating Weight
3494 lbs
1584 kg
Hinomoto E382 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Hinomoto |
Compact Utility tractor | |
Variants | |
|---|---|
E382 | 2WD |
E384 | 4WD |
Hinomoto E382 Engine | |
|---|---|
Toyosha 1.9L 3-cyl diesel | |
Fuel tank | 8.5 gal
32.2 L |
Engine details ...  | |
Hinomoto E382 Power | |
|---|---|
Engine (gross) | 40.4 hp
30.1 kW |
Engine (net) | 37.5 hp
28.0 kW |
PTO (claimed) | 34.5 hp
25.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Open operator station. ROPS available. |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 3340 lbs
1515 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
independent OptOptional | |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Weight | 3494 lbs
1584 kg |
Front tire | 5.50-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
Model E382 published by Hinomoto | |
E382/E384 published in 1983, by Hinomoto |
Engine
Engine Detail — 118.6 ci / 1.9 L Diesel
Manufacturer | Toyosha 3S200 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 118.6 ci
1.9 L |
Bore/Stroke | 3.62x3.94 inches
92 x 100 mm |
Power (net) | 37.5 hp
28.0 kW |
Power (gross) | 40.4 hp
30.1 kW |
Fuel system | indirect injection |
Compression | 23.1:1 |
Rated RPM | 2500 |
Torque | 94 lb-ft
127.5 Nm |
Torque RPM | 1700 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 5.3 qts
5.0 L |
Coolant capacity | 8.5 qts
8.0 L |
Hinomoto E382 Engine | |
|---|---|
 |

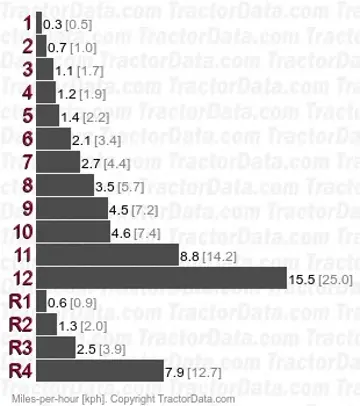

Transmission
Transmission options | |
|---|---|
12-speed gear | |
24-speed creeper |
Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Oil capacity | 42.3 qts
40.0 L |
 | |
Transmission | |
Type | creeper |
Gears | 24 forward and 8 reverse |
Dimensions
Hinomoto E382 Tires | |
|---|---|
Standard tires (ag) | Front: 5.50-16. Rear: 12.4-28 |
Optional tires (ag) | Front: 5.50-16. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Length | 122.6 inches
311 cm |
Width | 41.3 inches
104 cm |
Height (steering wheel) | 60.2 inches
152 cm |
Height (exhaust) | 77 inches
195 cm |
Weight | 3494 lbs
1584 kg |
Ground clearance | 14.6 inches
37 cm |
Front tread | 47.6 to 59.5 inches
120 to 151 cm |
Rear tread | 46.5 to 61.8 inches
118 to 156 cm |
Photos
Hinomoto E382 tractor photo
