Hinomoto E384
The Hinomoto E384 is a tractor produced by Hinomoto. It is equipped with a 118.6 ci 1.9 L engine. The rated power output is 37.5 hp 28.0 kW. Transmission: 24 forward and 8 reverse. Operating weight: 3638 lbs 1650 kg.
Engine Power
37.5 hp
28.0 kW
Fuel & Capacities
8.5 gal
32.2 L
Transmission
24 forward and 8 reverse
Operating Weight
3638 lbs
1650 kg
Hinomoto E384 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Compact Utility tractor | Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Hinomoto |
Compact Utility tractor | |
Variants | |
|---|---|
E382 | 2WD |
E384 | 4WD |
Hinomoto E384 Engine | |
|---|---|
Toyosha 1.9L 3-cyl diesel | |
Fuel tank | 8.5 gal
32.2 L |
Engine details ...  | |
Hinomoto E384 Power | |
|---|---|
Engine (gross) | 40.4 hp
30.1 kW |
Engine (net) | 37.5 hp
28.0 kW |
PTO (claimed) | 34.5 hp
25.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Open operator station. ROPS available. |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 3340 lbs
1515 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
independent OptOptional | |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Weight | 3638 lbs
1650 kg |
Front tire | 8-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
References | |
|---|---|
 | |
E382/E384 published in 1983, by Hinomoto |
Engine
Engine Detail — 118.6 ci / 1.9 L Diesel
Manufacturer | Toyosha 3S200 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 118.6 ci
1.9 L |
Bore/Stroke | 3.62x3.94 inches
92 x 100 mm |
Power (net) | 37.5 hp
28.0 kW |
Power (gross) | 40.4 hp
30.1 kW |
Fuel system | indirect injection |
Compression | 23.1:1 |
Rated RPM | 2500 |
Torque | 94 lb-ft
127.5 Nm |
Torque RPM | 1700 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 5.3 qts
5.0 L |
Coolant capacity | 8.5 qts
8.0 L |
Hinomoto E384 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
12-speed gear | |
24-speed creeper |

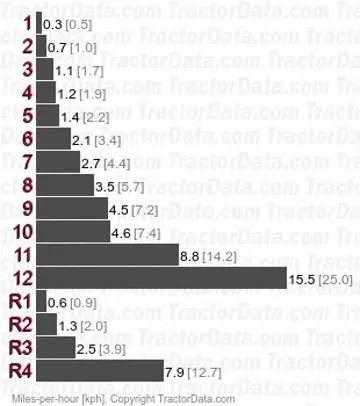

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Oil capacity | 42.3 qts
40.0 L |
 | |
Transmission | |
Type | creeper |
Gears | 24 forward and 8 reverse |
Dimensions
Hinomoto E384 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4-28 |
Optional tires (ag) | Front: 8-16. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Length | 127.6 inches
324 cm |
Width | 41.3 inches
104 cm |
Height (steering wheel) | 63 inches
160 cm |
Height (exhaust) | 77.6 inches
197 cm |
Weight | 3638 lbs
1650 kg |
Ground clearance | 15 inches
38 cm |
Front tread | 59.5 to 70.9 inches
151 to 180 cm |
Rear tread | 46.5 to 61.8 inches
118 to 156 cm |
Photos
Hinomoto E384 tractor photo
