Homelite RE-5
The Homelite RE-5 is a tractor produced by Homelite Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse. Operating weight: 270 lbs*Weight with mower deck. 122 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
2 forward and 1 reverse
Operating Weight
270 lbs*Weight with mower deck.
122 kg
Overview
 | 1973 - 1976
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Homelite (a part of Textron) |
Riding lawn mower | |
Original price was $414 in 1973 | |
Homelite RE-5 Engine | |
|---|---|
5HP Briggs & Stratton 206cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Homelite RE-5 Transmission | |
|---|---|
2-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 270 lbs
122 kg |
Front tire | 4.10x3.50-4 |
Rear tire | 4.80x4.00-8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Homelite Lawn & Garden Equipment published in 1972 |
Engine
Engine Detail — 206 cc / 12.57 ci Gasoline
Manufacturer | Briggs & Stratton 130000 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 206 cc
12.57 ci |
Bore/Stroke | 2.56x2.44 inches
65 x 62 mm |
Power (gross) | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 2 forward and 1 reverse
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Homelite RE-5 Tires | |
|---|---|
Lawn/turf front | 4.10x3.50-4 |
Lawn/turf rear | 4.80x4.00-8 |
Dimensions | |
|---|---|
Weight | 270 lbs*Weight with mower deck.
122 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Homelite |
manual lift | |
Cutting width | 26 inches
66 cm |
Photos

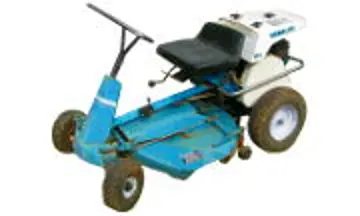

Homelite RE-5 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Homelite Lawn Tractors Homelite RE-5.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Homelite Lawn Tractors Homelite RE-5 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Homelite Lawn Tractors Homelite RE-5.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
