Homelite Yard Trac Deluxe
The Homelite Yard Trac Deluxe is a tractor produced by Homelite Lawn Tractors. It is equipped with a 199 cc 12.2 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 4 forward and 1 reverse. Operating weight: 260 lbs 117 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
4 forward and 1 reverse
Operating Weight
260 lbs
117 kg
Overview
 | 1963 - 1968
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Homelite (a part of Textron) |
Lawn tractor | |
Homelite Yard Trac Deluxe Engine | |
|---|---|
5HP Lauson 199cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Homelite Yard Trac Deluxe Transmission | |
|---|---|
4-speed friction drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 260 lbs
117 kg |
Front tire | 10x3 |
Rear tire | 4.80/4.00x8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Yard Trac Owners Manual (24014) published in 1963 | |
Yard Trac Deluxe published in 1967, by Homelite |
Engine
Engine Detail — 199 cc / 12.2 ci Gasoline
Manufacturer | Lauson V50 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 199 cc
12.2 ci |
Power (gross) | 5 hp
3.7 kW |
Air cleaner | dry |
Starter type | manual recoil |
Transmission
Transmission — 4 forward and 1 reverse friction drive
Type | friction drive |
Gears | 4 forward and 1 reverse |
Dimensions
Homelite Yard Trac Deluxe Tires | |
|---|---|
Lawn/turf front | 10x3 |
4.10/3.50x4 | |
Lawn/turf rear | 4.80/4.00x8 |
16x6.50x8 | |
Dimensions | |
|---|---|
Weight | 260 lbs
117 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Homelite |
1-blade with manual lift | |
Cutting width | 26 inches
66 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

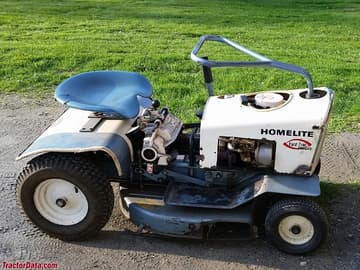

Homelite Yard Trac Deluxe
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Homelite Lawn Tractors Homelite Yard Trac Deluxe.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Homelite Lawn Tractors Homelite Yard Trac Deluxe Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Homelite Lawn Tractors Homelite Yard Trac Deluxe.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
