Homelite Yard Trac 526
The Homelite Yard Trac 526 is a tractor produced by Homelite Lawn Tractors. It is equipped with a 199 cc 12.2 ci engine. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 4 forward and 1 reverse. Operating weight: 295 lbs 133 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
4 forward and 1 reverse
Operating Weight
295 lbs
133 kg
Overview
 | 1969 - 1972
Model year 19691970-1972
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Homelite (a part of Textron) |
Lawn tractor | |
Homelite Yard Trac 526 Engine | |
|---|---|
5HP Lauson 199cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Homelite Yard Trac 526 Transmission | |
|---|---|
4-speed friction drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 295 lbs
133 kg |
Front tire | 4.10/3.50x4 |
Rear tire | 4.80/4.00x8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Model 526 published in 1969, by Homelite |
Engine
Engine Detail — 199 cc / 12.2 ci Gasoline
Manufacturer | Lauson |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 199 cc
12.2 ci |
Power (gross) | 5 hp
3.7 kW |
Air cleaner | dry |
Starter type | manual recoil |
Transmission
Transmission — 4 forward and 1 reverse friction drive
Type | friction drive |
Gears | 4 forward and 1 reverse |
Dimensions
Homelite Yard Trac 526 Tires | |
|---|---|
Lawn/turf front | 4.10/3.50x4 |
Lawn/turf rear | 4.80/4.00x8 |
16x6.50x8 | |
Dimensions | |
|---|---|
Weight | 295 lbs
133 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Homelite |
1-blade with manual lift | |
Cutting width | 26 inches
66 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

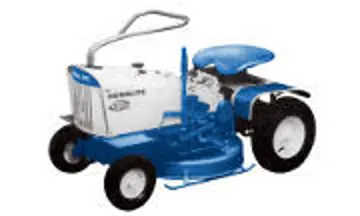

Homelite Yard Trac 526 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Homelite Lawn Tractors Homelite Yard Trac 526.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Homelite Lawn Tractors Homelite Yard Trac 526 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Homelite Lawn Tractors Homelite Yard Trac 526.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
