Honda H2013

The Honda H2013 is a tractor produced by Honda Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The rated power output is 13 hp 9.7 kW. Transmission: hydrostatic. Operating weight: 340 lbs (gear dry) 154 kg.

Overview

	1995 - 1998 Lawn tractor
1995 - 1998
Lawn tractor

Production
Manufacturer	Honda
Lawn tractor

Variants
H2013DHA	hydrostatic transmission
H2013SDA	constant mesh gear transmission

Honda H2013 Engine
13HP Honda 388cc 1-cyl gasoline
Fuel tank	1.3 gal 4.9 L
Engine details ...

Honda H2013 Transmission
5-speed
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	340 to 375 pounds
Front tire	13x6.5-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	170
Battery volts	12

References
Honda Harmony Lawn Tractors published in 1995

Engine

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer	Honda GXV390
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	388 cc 23.7 ci
Bore/Stroke	3.46x2.51 inches 88 x 64 mm
Power	13 hp 9.7 kW
Rated RPM	3600
Torque	20.3 lb-ft 27.5 Nm
Torque RPM	2500
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.16 qts 1.1 L

Transmission

Transmission — gear

Transmission	gear
Gears	5 forward and 1 reverse

Transmission — hydrostatic

Transmission	hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.28 qts 3.1 L
Single control lever with stop for mowing range and transport range.

Dimensions

Honda H2013 Tires
Lawn/turf front	13x6.5-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	45 inches 114 cm
Length	66 inches (gear) 167 cm
	67 inches (hydrostatic) 170 cm
Width	36 inches 91 cm
Height	40.5 inches 102 cm
Weight	340 lbs (gear dry) 154 kg
	375 lbs (hydro dry) 170 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower

38" Mower deck
Type	mid-mount Honda
Cutting width	38 inches 96 cm

Photos

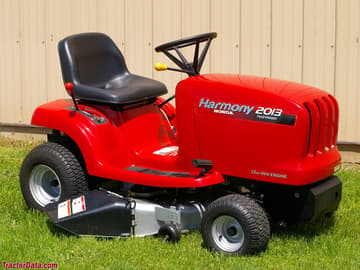

Honda H2013
