Honda RT5000

The Honda RT5000 is a tractor produced by Honda Lawn Tractors. It is equipped with a 339 cc 20.7 ci engine. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: 8 forward and 2 reverse. Operating weight: 959 lbs (dry) 435 kg.

Engine Power
Gasoline (listed): 11 hp / 8.2 kW
Fuel & Capacities
2.2 gal 8.3 L
Transmission
8 forward and 2 reverse
Operating Weight
959 lbs (dry) 435 kg

Overview

Honda RT5000 tractor photo
1986 - 1989 Garden tractor
Production
Manufacturer
Honda
Garden tractor
Honda RT5000 Engine
11HP Honda 339cc 1-cyl gasoline
Engine details ...
Honda RT5000 Transmission
8-speed gear
Transmission details ...
Mechanical
Two- or four-wheel drive
Steering
manual four-wheel
Mechanical shoe brakes
Capacity
Fuel
2.2 gal 8.3 L
Hydraulic system
0.53 gal 2.0 L
Hydraulics
Capacity
0.53 gal 2.0 L
Pressure
1280 psi 88.3 bar
Tractor hitch
Rear Type
0
Rear lift (at ends)
550 lbs 249 kg
Front lift
550 lbs 249 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
2000
Front PTO
independent
Front PTO Type
2650
Dimensions & Tires
Wheelbase
47.8 inches 121 cm
Weight
959 lbs 435 kg
Front tire
20x7.00-12.2
Rear tire
24x8.00-14.2
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
30

Engine

Engine Detail — 339 cc / 20.7 ci Gasoline

Manufacturer
Honda GX340
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
339 cc 20.7 ci
Bore/Stroke
3.20x2.50 inches 81 x 64 mm
Power
11 hp 8.2 kW
Rated RPM
3600
Starter
electric
Starter volts
12
Sparkplug gap
0.040 inches 1.016 mm
Oil capacity
1.2 qts 1.1 L

Transmission

Transmission — 8 forward and 2 reverse gear

Type
gear
Gears
8 forward and 2 reverse
Oil capacity
4 qts 3.8 L
Four forward and two reverse gears with high and low range.
RT5000 gear speeds

Dimensions

Honda RT5000 Tires
Lawn/turf front
20x7.00-12.2
Lawn/turf rear
24x8.00-14.2
Dimensions
Wheelbase
47.8 inches 121 cm
Length
81.9 inches 208 cm
Width
41.7 inches 105 cm
Height
76.4 inches (ROPS) 194 cm
Weight
959 lbs (dry) 435 kg

Attachments

Attachment overview
46" mid-mount mower deck
Snowblower
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
46" Mower deck
Type
mid-mount Honda
3-blade
Cutting width
46 inches 116 cm

Photos

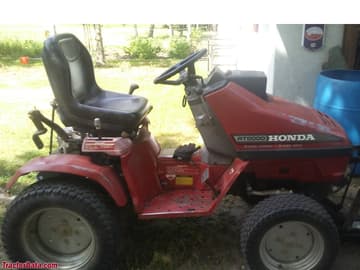

Honda RT5000

Honda RT5000

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda RT5000.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Honda Lawn Tractors Honda RT5000 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda RT5000.

Converted Equivalents:

Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
