Honda H3011
The Honda H3011 is a tractor produced by Honda Lawn Tractors. It is equipped with a 337 cc 20.6 ci engine. The rated power output is 11 hp 8.2 kW. Transmission: infinite forward and reverse. Operating weight: 364 to 400 pounds.
Engine Power
11 hp
8.2 kW
Fuel & Capacities
0.7 gal
2.6 L
Transmission
infinite forward and reverse
Operating Weight
364 to 400 pounds
Honda Lawn Tractors Honda H3011 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1992
Riding lawn mower |
|---|---|
1989 - 1992 | |
Riding lawn mower | |
1989 - 1992 | |
|---|---|
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Honda |
Riding lawn mower | |
Variants | |
|---|---|
H3011 | gear |
H3011H | hydrostatic |
Honda H3011 Engine | |
|---|---|
11HP Honda 337cc 1-cyl gasoline | |
Fuel tank | 0.7 gal
2.6 L |
Engine details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 43.3 inches
109 cm |
Weight | 364 to 400 pounds |
Front tire | 11x4.00-5 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
H3011 Riding Mower published in 1989, by Honda | |
H3011 - H3011H published in 1989 | |
Riding Mowers published in 1989, by Honda |
Engine
| 1989 - 1992
Riding lawn mower |
|---|---|
1989 - 1992 | |
Riding lawn mower | |
1989 - 1992 | |
|---|---|
Riding lawn mower |
Engine Detail — 337 cc / 20.6 ci Gasoline
Manufacturer | Honda GVX340K |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 337 cc
20.6 ci |
Bore/Stroke | 3.23x2.52 inches
82 x 64 mm |
Power | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.2 qts
1.1 L |
Sparkplug | NGK BPR5ES |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
| 1989 - 1992
Riding lawn mower |
|---|---|
1989 - 1992 | |
Riding lawn mower | |
1989 - 1992 | |
|---|---|
Riding lawn mower |
Transmission options | |
|---|---|
5-speed gear | |
hydrostatic |
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 1989 - 1992
Riding lawn mower |
|---|---|
1989 - 1992 | |
Riding lawn mower | |
1989 - 1992 | |
|---|---|
Riding lawn mower |
Honda H3011 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 43.3 inches
109 cm |
Length | 61 inches
154 cm |
Height (steering wheel) | 39.4 inches
100 cm |
Gear Weight | 364 lbs
165 kg |
Hydro Weight | 400 lbs
181 kg |
Front tread | 22.4 inches
56 cm |
Rear tread | 26 inches
66 cm |
Attachments
| 1989 - 1992
Riding lawn mower |
|---|---|
1989 - 1992 | |
Riding lawn mower | |
1989 - 1992 | |
|---|---|
Riding lawn mower |
30" Mower deck | |
|---|---|
Type | mid-mount Honda |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Overall width | 42.1 inches
106 cm |
Cut height | 1 to 3.5 inch
2 to 8 cm |
Cut positions | 6 |
Photos

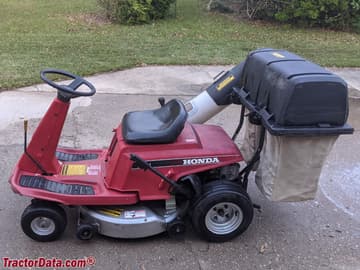

Honda H3011
