Honda H2113

The Honda H2113 is a tractor produced by Honda Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (listed): 13 hp / 9.7 kW. Transmission: hydrostatic. Operating weight: 340 to 423 pounds.

Engine Power
Gasoline (listed): 13 hp / 9.7 kW
Fuel & Capacities
1.3 gal 4.9 L
Transmission
hydrostatic
Operating Weight
340 to 423 pounds

Overview

Honda H2113 tractor photo
1988 - ???? Lawn tractor
1988 - ????
Lawn tractor
1988 - ????
Lawn tractor
Production
Manufacturer
Honda
Lawn tractor
Variants
H2113GDA
gear transmission
H2113HDA
hydrostatic transmission
Honda H2113 Engine
13HP Honda 388cc 1-cyl gasoline
Fuel tank
1.3 gal 4.9 L
Engine details ...
Honda H2113 Transmission
5-speed
Transmission details ...
Mechanical
Two-wheel drive
Dimensions & Tires
Wheelbase
45 inches 114 cm
Weight
340 to 423 pounds
Front tire
13x6.5-6
Rear tire
18x8.5-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery CCA
170
Battery volts
12

Engine

Honda H2113 tractor photo
1988 - ???? Lawn tractor
1988 - ????
Lawn tractor
1988 - ????
Lawn tractor

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer
Honda GXV390
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
388 cc 23.7 ci
Bore/Stroke
3.46x2.51 inches 88 x 64 mm
Power
13 hp 9.7 kW
Rated RPM
3600
Torque
20.3 lb-ft 27.5 Nm
Torque RPM
2500
Starter
electric
Starter volts
12
Sparkplug gap
0.030 inches 0.762 mm
Intake valve clearance
0.004 inches (cold) 0.102 mm
Exhaust valve clearance
0.006 inches (cold) 0.152 mm
Oil capacity
1.16 qts 1.1 L

Transmission

Honda H2113 tractor photo
1988 - ???? Lawn tractor
1988 - ????
Lawn tractor
1988 - ????
Lawn tractor

Transmission — gear

Transmission
gear
Gears
5 forward and 1 reverse
H2113 gear speeds

Transmission — hydrostatic

Transmission
hydrostatic
Gears
infinite forward and reverse
Oil capacity
3.28 qts 3.1 L
Single control lever with stop for mowing range and transport range.
H2113 hydrostatic speeds

Dimensions

Honda H2113 tractor photo
1988 - ???? Lawn tractor
1988 - ????
Lawn tractor
1988 - ????
Lawn tractor
Honda H2113 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
18x8.5-8
Dimensions
Wheelbase
45 inches 114 cm
Length
68.2 inches 173 cm
Width
35.8 inches 90 cm
49 inches (with mower deck) 124 cm
Height
40.5 inches 102 cm
Honda H2113 Weight
340 lbs (gear dry) 154 kg
375 lbs (hydro dry) 170 kg
423 lbs (hydro dry with deck) 191 kg

Attachments

Honda H2113 tractor photo
1988 - ???? Lawn tractor
1988 - ????
Lawn tractor
1988 - ????
Lawn tractor
38" Mower deck
Type
mid-mount Honda
Cutting width
38 inches 96 cm

Photos

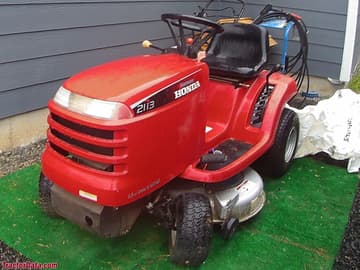

Honda H2113

Honda H2113

Honda H2113 operator station and controls.

Honda H2113 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda H2113.

Estimated Continuous Field Runtime: 1.9 hrs

Approximately 1.9 hours of continuous field operation at ~75% rated power on a full tank (1.3 gal / 4.9 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Honda Lawn Tractors Honda H2113 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda H2113.

Converted Equivalents:

Horsepower (HP)13 hp
Kilowatts (kW)9.7 kW
Metric Horsepower (PS / CV)13.2 PS
