Honda H5013

The Honda H5013 is a tractor produced by Honda Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (listed): 13 hp / 9.7 kW. Transmission: 8 forward and 2 reverse. Operating weight: 948 to 1025 pounds.

Engine Power
Gasoline (listed): 13 hp / 9.7 kW
Fuel & Capacities
2.2 gal 8.3 L
Transmission
8 forward and 2 reverse
Operating Weight
948 to 1025 pounds

Overview

Honda H5013 tractor photo
1991 - 1999 Garden tractor
Production
Manufacturer
Honda
Garden tractor
The Honda H5013 was sold as the Honda Mighty 13R in Japan.
Variants
H5013A2
2WD
H5013A4
4WD
Honda H5013 Engine
13HP Honda 388cc 1-cyl gasoline
Engine details ...
Honda H5013 Transmission
8-speed gear
Transmission details ...
Mechanical
Two- or four-wheel drive
Steering
manual four-wheel
Mechanical shoe brakes
Two-post ROPS.
Capacity
Fuel
2.2 gal 8.3 L
Hydraulic system
0.53 gal 2.0 L
Hydraulics
Capacity
0.53 gal 2.0 L
Pressure
1280 psi 88.3 bar
Tractor hitch
Rear Type
0 *Optional. Honda kit RLK5000.
Rear lift (at ends)
550 lbs 249 kg
Front lift
550 lbs 249 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
2000
Front PTO
independent
Front PTO Type
2650
Dimensions & Tires
Wheelbase
51.4 inches 130 cm
Weight
948 to 1025 pounds
Front tire
20x7.00-12.2
Rear tire
24x8.00-14.2
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
30
References
H5013 references literature
Owner's Manual Tractor H5013H (31752650) published in 1990
Honda Multi-Purpose Tractors published in 1994

Engine

Engine Detail — 388 cc / 23.7 ci Gasoline

Manufacturer
Honda GX390
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
388 cc 23.7 ci
Bore/Stroke
3.50x2.50 inches 89 x 64 mm
Power
13 hp 9.7 kW
Rated RPM
3600
Starter
electric
Starter volts
12
Sparkplug gap
0.040 inches 1.016 mm
Oil capacity
1.2 qts 1.1 L

Transmission

Transmission — 8 forward and 2 reverse gear

Type
gear
Gears
8 forward and 2 reverse
Oil capacity
4 qts 3.8 L
Four forward and two reverse gears with high and low range.
H5013 gear speeds

Dimensions

Honda H5013 Tires
Lawn/turf front
20x7.00-12.2
Lawn/turf rear
24x8.00-14.2
Dimensions
Wheelbase
51.4 inches 130 cm
Length
86.2 inches 218 cm
Width
41.7 inches 105 cm
Height (ROPS)
70.3 inches 178 cm
2WD Shipping weight
948 lbs 430 kg
4WD Shipping weight
1025 lbs 464 kg
Ground clearance
5.9 inches 14 cm

Attachments

Attachment overview
46" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
46" Mower deck
Type
mid-mount Honda MM46
3-blade
Cutting width
46 inches 116 cm

Photos

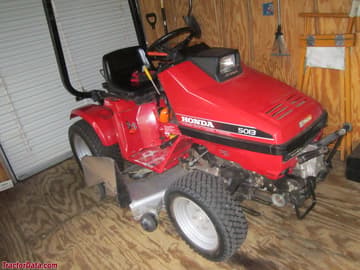

Honda H5013

Honda H5013

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda H5013.

Estimated Continuous Field Runtime: 3.3 hrs

Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Honda Lawn Tractors Honda H5013 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda H5013.

Converted Equivalents:

Horsepower (HP)13 hp
Kilowatts (kW)9.7 kW
Metric Horsepower (PS / CV)13.2 PS
