Honda HT3813

The Honda HT3813 is a tractor produced by Honda Lawn Tractors. It is equipped with a 358 cc 21.9 ci engine. The rated power output is 13 hp 9.7 kW. Transmission: 5 forward and 1 reverse. Operating weight: 545 lbs 247 kg.

Overview

	1985 - 1989 Lawn tractor
1985 - 1989
Lawn tractor

Production
Manufacturer	Honda
Lawn tractor

Honda HT3813 Engine
13HP Honda 358cc 2-cyl gasoline
Fuel tank	1.88 gal 7.1 L
Engine details ...

Honda HT3813 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.7 inches 116 cm
Weight	545 lbs 247 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	30

References
Owner's Manual HT3813 (31750602) published in 1985
Honda Lawn Tractors published in 1986

Engine

Engine Detail — 358 cc / 21.9 ci Gasoline

Manufacturer	Honda GX360K1
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft inline
Displacement	358 cc 21.9 ci
Bore/Stroke	2.28x2.68 inches 58 x 68 mm
Power	13 hp 9.7 kW
Starter	electric
Starter volts	12
Coolant capacity	1.85 qts 1.8 L
Sparkplug gap	0.026 inches 0.660 mm
Oil capacity	1.48 qts 1.4 L

Transmission

Transmission — 5 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	5 forward and 1 reverse

Dimensions

Honda HT3813 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.7 inches 116 cm
Length	69.1 inches 175 cm
Width	49.6 inches 125 cm
Height	41.1 inches 104 cm
Shipping weight	545 lbs 247 kg

Attachments

38" Mower deck
Type	mid-mount Honda
	2-blade with manual lift
Cutting width	38 inches 96 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

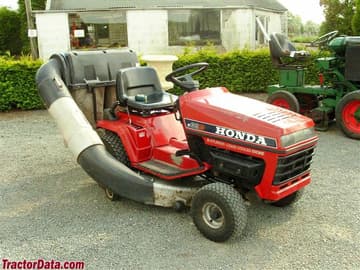

Honda HT3813

Honda HT3813

Honda HT3813
