Honda HT4213

The Honda HT4213 is a tractor produced by Honda Lawn Tractors. It is equipped with a 358 cc 21.9 ci engine. The listed engine power is Gasoline (listed): 13 hp / 9.7 kW. Transmission: 5 forward and 1 reverse. Operating weight: 567.3 lbs 257 kg.

Engine Power
Gasoline (listed): 13 hp / 9.7 kW
Fuel & Capacities
1.88 gal 7.1 L
Transmission
5 forward and 1 reverse
Operating Weight
567.3 lbs 257 kg

Overview

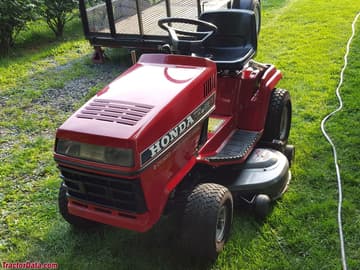

Honda HT4213 tractor photo
1987 - 1989 Lawn tractor
Production
Manufacturer
Honda
Lawn tractor
Honda HT4213 Engine
13HP Honda 358cc 2-cyl gasoline
Fuel tank
1.88 gal 7.1 L
Engine details ...
Honda HT4213 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
45.7 inches 116 cm
Weight
567.3 lbs 257 kg
Front tire
15x6.00-6
Rear tire
18x8.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
30
References
HT4213 references literature
Owner's Manual HT4213 (31750803) published in 1986
Honda Lawn Tractors published in 1986

Engine

Engine Detail — 358 cc / 21.9 ci Gasoline

Manufacturer
Honda GX360K1
Fuel Type
Gasoline
Configuration
2-cylinder, liquid-cooled horizontal-shaft inline
Displacement
358 cc 21.9 ci
Bore/Stroke
2.28x2.68 inches 58 x 68 mm
Power
13 hp 9.7 kW
Torque
19 lb-ft 25.8 Nm
Torque RPM
3000
Starter
electric
Starter volts
12
Coolant capacity
1.85 qts 1.8 L
Sparkplug gap
0.026 inches 0.660 mm
Oil capacity
1.48 qts 1.4 L
Honda HT4213 Engine
Honda HT4213 engine image
Image courtesy of Ron Sites

Transmission

Transmission — 5 forward and 1 reverse shaft-driven gear

Type
shaft-driven gear
Gears
5 forward and 1 reverse
HT4213 shaft-driven gear speeds
HT4213 Transmission Controls
Honda HT4213 transmission controls
1
Gear Shift
2
Throttle
3
Brake Pedal

Dimensions

Honda HT4213 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
18x8.50-8
Dimensions
Wheelbase
45.7 inches 116 cm
Length
69 inches 175 cm
Width
57 inches 144 cm
Height
41.1 inches 104 cm
Shipping weight
567.3 lbs 257 kg

Attachments

42" Mower deck
Type
mid-mount Honda
3-blade with manual lift
Cutting width
42 inches 106 cm
Cut height
1.5 to 4 inch 3 to 10 cm
Cut positions
6

Photos

Honda HT4213

Honda HT4213

Honda HT4213

Honda HT4213

Honda HT4213

Honda HT4213

Honda HT4213 engine

Honda HT4213 engine

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda HT4213.

Estimated Continuous Field Runtime: 2.8 hrs

Approximately 2.8 hours of continuous field operation at ~75% rated power on a full tank (1.9 gal / 7.1 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Honda Lawn Tractors Honda HT4213 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda HT4213.

Converted Equivalents:

Horsepower (HP)13 hp
Kilowatts (kW)9.7 kW
Metric Horsepower (PS / CV)13.2 PS
