Huber B
The Huber B is a tractor produced by Huber. It is equipped with a 206 ci 3.4 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 4315 lbs 1957 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
4315 lbs
1957 kg
Overview
 | 1936 - 1943
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Huber |
Row-Crop tractor | |
Built in Marion, Ohio, USA | |
Variants | |
|---|---|
B | row-crop |
OB | orchard |
Huber B Engine | |
|---|---|
Buda 3.4L 4-cyl gasoline | |
Engine details ...  |
Huber B Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Huber B Power | |
|---|---|
Plows | 2 |
Drawbar (tested) | 22.94 hp
17.1 kW |
Belt (tested) | 27.50 hp
20.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 4315 lbs
1957 kg |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 10 inches
25 cm |
Width | 7.375 inches
18 cm |
RPM | 990 |
Speed | 2617 ft/min
797.66 meters/min |
Engine
Engine Detail — 206 ci / 3.4 L Gasoline
Manufacturer | Buda |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206 ci
3.4 L |
Bore/Stroke | 3.813x4.50 inches
97 x 114 mm |
Air cleaner | oil bath |
Rated RPM | 1300 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Huber B Tires |
|---|
Dimensions | |
|---|---|
Operating weight | 4315 lbs
1957 kg |
Tests
Nebraska Tractor Test 292 | |
|---|---|
Gasoline 2WD
October 13 - November 8, 1937
Link: Nebraska Tractor Test 292 file | |
Belt power (max) | 27.50 hp
20.5 kW |
Belt fuel use (max) | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 22.94 hp
17.1 kW |
Gear 4 used for power test. | |
Max pull | 2767 lbs
1255 kg |
Gear 2 used for pull test. | |
Photos

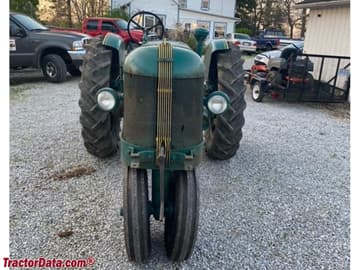

Huber B
Huber B
Huber B
Huber B
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huber B.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huber B Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huber B.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
