Huber HK 32-45
The Huber HK 32-45 is a tractor produced by Huber. It is equipped with a 516 ci 8.5 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 6000 lbs 2721 kg.
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Operating Weight
6000 lbs
2721 kg
Huber HK 32-45 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1935 - 1940
Standard-tread tractor |
|---|---|
1935 - 1940 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Huber |
Standard-tread tractor | |
Built in Marion, Ohio, USA | |
Huber HK 32-45 Engine | |
|---|---|
Waukesha 8.5L 4-cyl gasoline | |
Engine details ...  |
Huber HK 32-45 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Huber HK 32-45 Power | |
|---|---|
Drawbar (claimed) | 32 hp
23.9 kW |
Belt (claimed) | 45 hp
33.6 kW |
Plows | 4 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 6000 lbs
2721 kg |
Rear tire | 50x12 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 17 inches
43 cm |
Width | 8.5 inches
21 cm |
RPM | 616 |
Speed | 2740 ft/min
835.15 meters/min |
Engine
Engine Detail — 516 ci / 8.5 L Gasoline
Manufacturer | Waukesha |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 516 ci
8.5 L |
Bore/Stroke | 5.125x6.25 inches
130 x 159 mm |
Rated RPM | 1150 |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Huber HK 32-45 Tires | |
|---|---|
Ag rear | 50x12 (steel) |
Dimensions | |
|---|---|
Length | 135 inches
342 cm |
Width | 77 inches
195 cm |
Height (hood) | 61 inches
154 cm |
Weight | 6000 lbs
2721 kg |
Photos

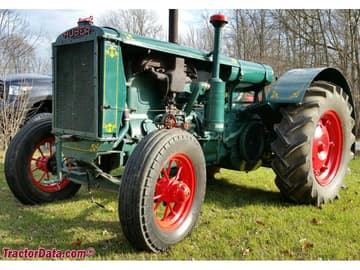

1935 Huber model HK tractor.
