Hurlimann H-351
The Hurlimann H-351 is a tractor produced by Hurlimann. It is equipped with a 165.7 ci 2.7 L engine. The rated power output is 49.6 hp 37.0 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4409 to 5026 pounds.
Engine Power
49.6 hp
37.0 kW
Fuel & Capacities
14.5 gal
54.9 L
Transmission
16 forward and 4 reverse
Operating Weight
4409 to 5026 pounds
Hurlimann H-351 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1986 - 1997
Utility tractor |
|---|---|
1986 - 1997 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Hurlimann |
Utility tractor | |
Variants | |
|---|---|
550 | similar Lamborghini model |
Solar 50 | similar SAME model |
Hurlimann H-351 Engine | |
|---|---|
SAME 2.7L 3-cyl diesel | |
Fuel tank | 14.5 gal
54.9 L |
Engine details ...  | |
Hurlimann H-351 Power | |
|---|---|
Engine | 49.6 hp
37.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | manual |
Steering | power OptOptional |
Mechanical wet disc brakes | |
Four-post ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 5225 lbs
2370 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 82.3 inches
209 cm |
4WD Wheelbase | 81.3 inches
206 cm |
Weight | 4409 to 5026 pounds |
Front tire | 6.50-16 |
2WD Rear tire | 12.4/11-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 165.7 ci / 2.7 L Diesel
Manufacturer | SAME 983 L |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 165.7 ci
2.7 L |
Bore/Stroke | 3.86x4.72 inches
98 x 120 mm |
Power | 49.6 hp
37.0 kW |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed synchronized | |
16-speed creeper |

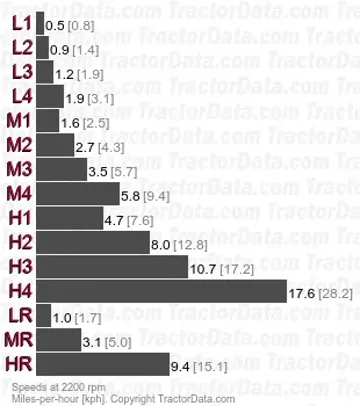

Transmission — 12 forward and 3 reverse synchronized
Type | synchronized |
Gears | 12 forward and 3 reverse |
Clutch | dry disc |
With 12.4/11-28 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 16 forward and 4 reverse |
 | |
Dimensions
Hurlimann H-351 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.50-16. Rear: 12.4/11-28 |
4WD Standard tires (ag) | Front: 8.00-20. Rear: 12.4/11-28 |
2WD Optional tires (ag) | Front: 6.50-16. Rear: 13.6/12-28 |
2WD Optional tires (ag) | Front: 6.50-16. Rear: 14.9/13-28 |
2WD Optional tires (ag) | Front: 6.00-19. Rear: 12.4/11-32 |
4WD Optional tires (ag) | Front: 9.5/9-20. Rear: 13.6/12-28 |
4WD Optional tires (ag) | Front: 11.2/10-20. Rear: 14.9/13-28 |
4WD Optional tires (ag) | Front: 8.3/8-24. Rear: 12.4/11-32 |
Dimensions | |
|---|---|
2WD Wheelbase | 82.3 inches
209 cm |
4WD Wheelbase | 81.3 inches
206 cm |
Length | 124 inches (without hitch)
314 cm |
133.3 inches (with hitch)
338 cm | |
Width | 66 inches*Minimum width
167 cm |
2WD Weight | 4409 lbs
1999 kg |
4WD Weight | 5026 lbs
2279 kg |
2WD Ground clearance | 18.1 inches
45 cm |
4WD Ground clearance | 13.8 inches
35 cm |
2WD Front tread | 48.4 to 64.2 inches
122 to 163 cm |
4WD Front tread | 53.5 to 61.4 inches
135 to 155 cm |
Rear tread | 53.5 to 73.2 inches
135 to 185 cm |
Hurlimann H-351 Height | |
|---|---|
2WD Hood | 52 inches
132 cm |
4WD Hood | 51.2 inches
130 cm |
ROPS | 89.8 inches
228 cm |
Photos
Hurlimann H-351 tractor photo
