Hurlimann Prince 45

The Hurlimann Prince 45 is a tractor produced by Hurlimann. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 41 hp 30.6 kW. Transmission: 16 forward and reverse. Operating weight: 2910 lbs 1319 kg.

Overview

	2007 - ???? Prince SeriesCompact Utility tractor
2007 - ????
Prince Series
Compact Utility tractor

2007 - ????
Prince Series
Compact Utility tractor

Production
Manufacturer	Hurlimann (a part of SAME)
Compact Utility tractor

Hurlimann Prince 45 Engine
Mitsubishi 1.5L 4-cyl diesel
Fuel tank	10 gal*Main tank 37.9 L
	4 gal*Optional auxiliary tank 15.1 L
Engine details ...

Hurlimann Prince 45 Power
Engine (gross)	43 hp 32.1 kW
Engine (net)	41 hp 30.6 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Steering	hydrostatic power
Mechanical wet disc brakes
Two-post ROPS.

Hydraulics
Pump flow	7.9 gpm 29.9 lpm

Tractor hitch
Control	depth and draft control
Rear lift	2646 lbs 1200 kg
Front lift	882 lbs 400 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540/540E
Mid PTO	independent
Mid PTO Type	2000
Front PTO	independent
Clutch	electro-hydraulic wet disc
Front PTO Type	1000

Dimensions & Tires
Wheelbase	68.7 inches 174 cm
Weight	2910 lbs 1319 kg
Rear tire	360/70R24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

	2007 - ???? Prince SeriesCompact Utility tractor
2007 - ????
Prince Series
Compact Utility tractor

2007 - ????
Prince Series
Compact Utility tractor

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Mitsubishi
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.07x3.09 inches 78 x 78 mm
Emissions	Stage III
Rated Power (net)	41 hp 30.6 kW
Rated Power (gross)	43 hp 32.1 kW
Fuel system	indirect injection
Air cleaner	dry
Rated RPM	300
Torque	73.8 lb-ft 100.1 Nm
Torque RPM	2100
Starter	electric
Starter volts	12

Transmission

	2007 - ???? Prince SeriesCompact Utility tractor
2007 - ????
Prince Series
Compact Utility tractor

2007 - ????
Prince Series
Compact Utility tractor

Transmission options
12-speed partially synchronized
16-speed partially synchronized

Transmission — 12 forward and reverse partially synchronized

Type	partially synchronized
Gears	12 forward and reverse
Four synchronized gears in three ranges. Mechanical shuttle.

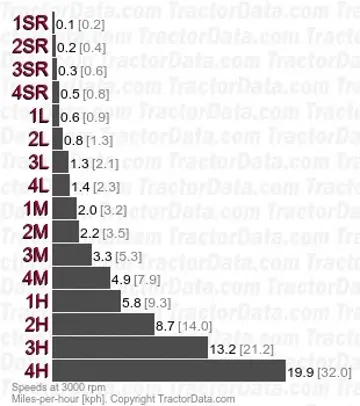

Transmission — 16 forward and reverse partially synchronized

Type	partially synchronized
Gears	16 forward and reverse
Four synchronized gears in four ranges. Mechanical shuttle.
With 360/70R24 rear tires. Reverse speeds slightly faster than forward.

Dimensions

	2007 - ???? Prince SeriesCompact Utility tractor
2007 - ????
Prince Series
Compact Utility tractor

2007 - ????
Prince Series
Compact Utility tractor

Hurlimann Prince 45 Tires
Ag rear	360/70R24

Dimensions
Wheelbase	68.7 inches 174 cm
Length	117.3 inches 297 cm
Width	53.5 inches 135 cm
Height (ROPS)	79.5 inches 201 cm
Weight	2910 lbs 1319 kg
Ground clearance	15.4 inches 39 cm
Front tread	41 to 51.8 inches 104 to 131 cm
Rear tread	39.6 to 52 inches 100 to 132 cm

Photos

Hurlimann Prince 45 tractor photo
