Hurlimann H-496
The Hurlimann H-496 is a tractor produced by Hurlimann. It is equipped with a 278.37 ci 4.6 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 24 forward and 12 reverse. Operating weight: 8511 lbs 3860 kg.
Overview
 | 1984 - 1989 |
|---|
Production | |
|---|---|
Manufacturer | Hurlimann |
Hurlimann H-496 Engine | |
|---|---|
SAME 4.6L 4-cyl diesel | |
Fuel tank | 34.3 gal
129.8 L |
Engine details ...  | |
Hurlimann H-496 Transmission | |
|---|---|
24-speed | |
Transmission details ...  |
Hurlimann H-496 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Hydraulics | |
|---|---|
Pump flow | 16.9 gpm
64.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 10143 lbs
4600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 103.15 inches
262 cm |
Weight | 8511 to 9702 pounds |
Front tire | 9.00-16 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 278.37 ci / 4.6 L Diesel
Manufacturer | SAME |
Configuration | turbocharged diesel, 4-cylinder |
Displacement | 278.37 ci
4.6 L |
Bore/Stroke | 4.3307x4.7244 inches
110 x 120 mm |
Power | 95 hp
70.8 kW |
Rated RPM | 2300 |
Torque | 265.5 lb-ft
360.0 Nm |
Torque RPM | 1300 |
Transmission
Transmission — 24 forward and 12 reverse
Gears | 24 forward and 12 reverse |
Dimensions
Hurlimann H-496 Tires | |
|---|---|
Ag front | 9.00-16 |
14.9-24 (2WD) | |
Ag rear | 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 103.15 inches
262 cm |
Length | 157.87 inches
400 cm |
Height | 104.33 inches
264 cm |
Weight | 8511 lbs
3860 kg |
9702 lbs (4WD)
4400 kg | |
Photos

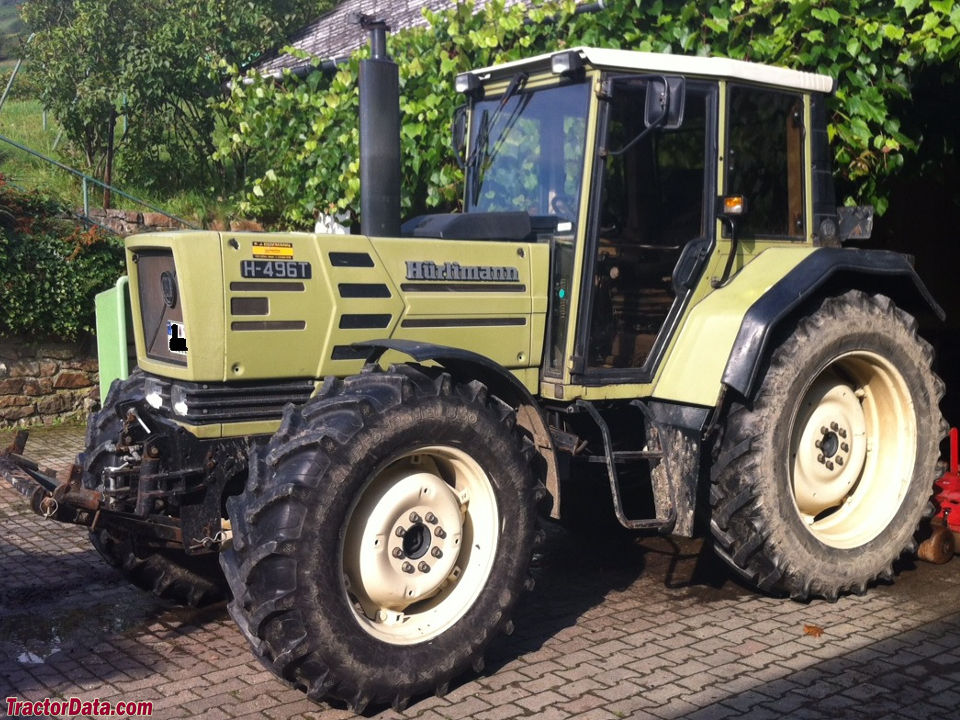

Hurlimann H496T, left side.
Hurlimann H496T, front right.
Hurlimann H496T, in cab view.
Recommended Implements & Sizing Guide
Engineering recommendations for Hurlimann H-496 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hurlimann H-496.
Estimated Continuous Field Runtime: 6.9 hrs
Approximately 6.9 hours of continuous field operation at ~75% rated power on a full tank (34.3 gal / 129.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Hurlimann H-496 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hurlimann H-496.
Converted Equivalents:
Direct Competitor Comparison
Compare Hurlimann H-496 against same-era industry alternatives in the same horsepower class.
