Hurlimann Prince 35
The Hurlimann Prince 35 is a tractor produced by Hurlimann. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (net): 35 hp / 26.1 kW; Diesel (gross): 39 hp / 29.1 kW. Transmission: 16 forward and reverse. Operating weight: 2756 lbs 1250 kg.
Engine Power
Diesel (net): 35 hp / 26.1 kW; Diesel (gross): 39 hp / 29.1 kW
Fuel & Capacities
10 gal*Main tank
37.9 L
Transmission
16 forward and reverse
Operating Weight
2756 lbs
1250 kg
Overview
 | 2007 - ????
Prince SeriesCompact Utility tractor |
|---|---|
2007 - ???? | |
Prince Series | |
Compact Utility tractor | |
2007 - ???? | |
|---|---|
Prince Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Hurlimann (a part of SAME) |
Compact Utility tractor | |
Hurlimann Prince 35 Engine | |
|---|---|
Mitsubishi 1.5L 4-cyl diesel | |
Fuel tank | 10 gal*Main tank
37.9 L |
4 gal*Optional auxiliary tank
15.1 L | |
Engine details ...  | |
Hurlimann Prince 35 Power | |
|---|---|
Engine (gross) | 39 hp
29.1 kW |
Engine (net) | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic rear |
Steering | hydrostatic power |
Mechanical wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Pump flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Control | depth and draft control |
Rear lift | 2646 lbs
1200 kg |
Front lift | 882 lbs
400 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
540/540E | |
Mid PTO | independent |
Mid PTO Type | 2000 |
Front PTO | independent |
Clutch | electro-hydraulic wet disc |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 68.7 inches
174 cm |
Weight | 2756 lbs
1250 kg |
Rear tire | 320/70R20 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 2007 - ????
Prince SeriesCompact Utility tractor |
|---|---|
2007 - ???? | |
Prince Series | |
Compact Utility tractor | |
2007 - ???? | |
|---|---|
Prince Series | |
Compact Utility tractor |
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.07x3.09 inches
78 x 78 mm |
Emissions | Stage III |
Rated Power (net) | 35 hp
26.1 kW |
Rated Power (gross) | 39 hp
29.1 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Rated RPM | 3000 |
Torque | 61.2 lb-ft
83.0 Nm |
Torque RPM | 1900 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2007 - ????
Prince SeriesCompact Utility tractor |
|---|---|
2007 - ???? | |
Prince Series | |
Compact Utility tractor | |
2007 - ???? | |
|---|---|
Prince Series | |
Compact Utility tractor |
Transmission options | |
|---|---|
12-speed partially synchronized | |
16-speed partially synchronized |

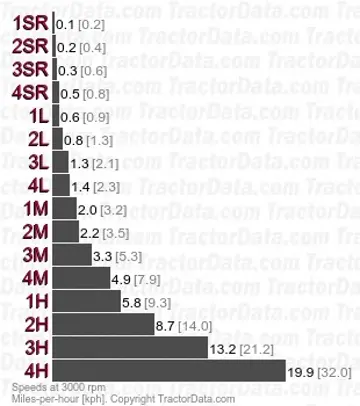

Transmission — 12 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and reverse |
Four synchronized gears in three ranges. Mechanical shuttle. | |
Transmission — 16 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 16 forward and reverse |
Four synchronized gears in four ranges. Mechanical shuttle. | |
With 360/70R24 rear tires. Reverse speeds slightly faster than forward. | |
 | |
Dimensions
| 2007 - ????
Prince SeriesCompact Utility tractor |
|---|---|
2007 - ???? | |
Prince Series | |
Compact Utility tractor | |
2007 - ???? | |
|---|---|
Prince Series | |
Compact Utility tractor |
Hurlimann Prince 35 Tires | |
|---|---|
Ag rear | 320/70R20 |
Dimensions | |
|---|---|
Wheelbase | 68.7 inches
174 cm |
Length | 116.1 inches
294 cm |
Width | 48 inches
121 cm |
Height (ROPS) | 77 inches
195 cm |
Weight | 2756 lbs
1250 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 38.2 to 44.1 inches
97 to 112 cm |
Rear tread | 32.3 to 40.2 inches
82 to 102 cm |
Photos
Hurlimann Prince 35 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hurlimann Prince 35.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hurlimann Prince 35 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hurlimann Prince 35.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
