Husqvarna 2146XLS

The Husqvarna 2146XLS is a tractor produced by Husqvarna Lawn Tractors. It is equipped with a 627 cc 38.26 ci engine. The listed engine power is Gasoline (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 625 lbs 283 kg.

Engine Power

Gasoline (gross): 21 hp / 15.7 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

infinite forward and reverse

Operating Weight

625 lbs 283 kg

Overview

	2009 Lawn tractor

Production
Manufacturer	Husqvarna
Lawn tractor
Original price was $2900 in 2009

Husqvarna 2146XLS Engine
21HP Briggs & Stratton 627cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Husqvarna 2146XLS Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	rear standard
Steering	manual
Open operator station with 15-inch high-back seat.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Weight	625 lbs 283 kg
Rear tire	20
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 627 cc / 38.26 ci Gasoline

Manufacturer	Briggs & Stratton
Configuration	2-cylinder, air-cooled vertical-shaft
Vanguard V-Twin gasoline
Displacement	627 cc 38.26 ci
Power (gross)	21 hp 15.7 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Husqvarna 2146XLS Tires
Lawn/turf rear	20 x 10

Dimensions
Weight	625 lbs 283 kg
Front axle	Cast-iron

Attachments

46" Mower deck
Type	mid-mount Husqvarna
Cutting width	46 inches 116 cm
Cut height	0.5 to 3.5 inch 1 to 8 cm
Cut positions	6

Photos

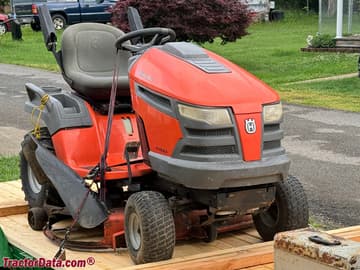

Husqvarna 2146XLS lawn tractor.

Husqvarna 2146XLS lawn tractor, rear view.

Recommended Implements & Sizing Guide

Engineering recommendations for Husqvarna Lawn Tractors Husqvarna 2146XLS based on its 21 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Husqvarna Lawn Tractors Husqvarna 2146XLS.

Estimated Continuous Field Runtime: 3.7 hrs

Approximately 3.7 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Husqvarna Lawn Tractors Husqvarna 2146XLS Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Husqvarna Lawn Tractors Husqvarna 2146XLS.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)21 hp

Kilowatts (kW)15.7 kW

Metric Horsepower (PS / CV)21.3 PS
