IMT 533
The IMT 533 is a tractor produced by Imt. It is equipped with a 144.0 ci 2.4 L engine. The rated power output is 35 hp 26.1 kW. Transmission: gear. Operating weight: 3343 lbs 1516 kg.
Overview
 | 1961 - 1988 | 1961 - 1988 |
|---|---|---|
1961 - 1988 | ||
1961 - 1988 |
|---|
Production | |
|---|---|
Manufacturer | IMT |
IMT 533 Engine | |
|---|---|
2.4L 3-cyl diesel | |
Engine details ...  |
IMT 533 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
IMT 533 Power | |
|---|---|
Engine | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Manual steering |
Photos | |
|---|---|
 | |
IMT 533 photos...  |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.4 inches
183 cm |
Weight | 3343 lbs
1516 kg |
Front tire | 5.00-16 |
Rear tire | 11.2-28 |
Full dimensions and tires ...  | |
Engine
| 1961 - 1988 | 1961 - 1988 |
|---|---|---|
1961 - 1988 | ||
1961 - 1988 |
|---|
Engine Detail | |
|---|---|
IM 033/T | |
diesel | |
3-cylinder | |
Displacement | 144.0 ci
2.4 L |
Bore/Stroke | 3.50x5.00 inches
89 x 127 mm |
Power | 35 hp
26.1 kW |
Rated RPM | 2000 |
Transmission
| 1961 - 1988 | 1961 - 1988 |
|---|---|---|
1961 - 1988 | ||
1961 - 1988 |
|---|
Transmission | |
|---|---|
Transmission | gear |
Gears | 6 forward and 2 reverse |
Dimensions
| 1961 - 1988 | 1961 - 1988 |
|---|---|---|
1961 - 1988 | ||
1961 - 1988 |
|---|
IMT 533 Tires | |
|---|---|
Ag front | 5.00-16 |
Ag rear | 11.2-28 |
Dimensions | |
|---|---|
Wheelbase | 72.4 inches
183 cm |
Length | 116.9 inches
296 cm |
Height | 53.9 inches
136 cm |
Weight | 3343 lbs
1516 kg |
Photos

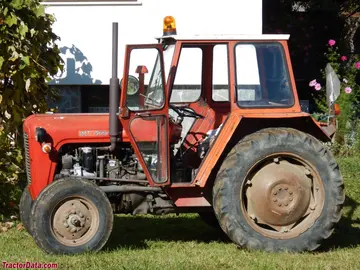

IMT 533 Deluxe
