IMT 577

The IMT 577 is a tractor produced by Imt. It is equipped with a 247.7 ci 4.1 L engine. The listed engine power is Diesel (listed): 70 hp / 52.2 kW. Transmission: 10 forward and 2 reverse. Operating weight: 8,015 lbs 3635 kg.

Overview

	1983 - ????	1983 - ????

1983 - ????

Production
Manufacturer	IMT

IMT 577 Engine
4.1L 4-cyl diesel
Fuel tank	23.8 gal 90.1 L
	29 gal (optional) 109.8 L
Engine details ...

IMT 577 Transmission
10-speed
Transmission details ...

IMT 577 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Disc brakes

Hydraulics
Total flow	6 gpm 22.7 lpm
	8.7 gpm (optional) 32.9 lpm

Tractor hitch
Rear lift	4630.5 lbs 2100 kg

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	87.4 inches 221 cm
Weight	8,015 lbs 3635 kg
Front tire	7.50-16
Rear tire	18.4-30
Full dimensions and tires ...

Engine

	1983 - ????	1983 - ????

1983 - ????

Engine Detail — 247.7 ci / 4.1 L Diesel

Manufacturer	S 44A
Fuel Type	Diesel
Configuration	4-cylinder
Displacement	247.7 ci 4.1 L
Bore/Stroke	3.98x5.00 inches 101 x 127 mm
Power	70 hp 52.2 kW
Rated RPM	2000
Torque	200 lb-ft 271.2 Nm
Torque RPM	1300

Transmission

	1983 - ????	1983 - ????

1983 - ????

Transmission — 10 forward and 2 reverse

Gears

10 forward and 2 reverse

Dimensions

	1983 - ????	1983 - ????

1983 - ????

IMT 577 Tires
Ag front	7.50-16
Ag rear	18.4-30
Ag front	9.5-24
Ag rear	18.4-30

Dimensions
Wheelbase	87.4 inches 221 cm
Length	166.9 inches 423 cm
Height	105.5 inches 267 cm
Weight	8,015 lbs 3635 kg

Photos

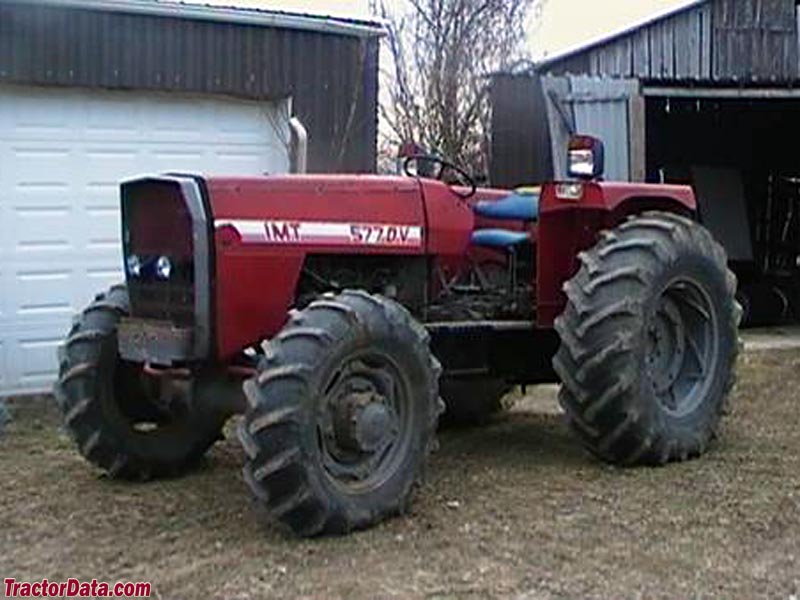

IMT 577
