International Harvester 1026

The International Harvester 1026 is a tractor produced by International Harvester. It is equipped with a 406.9 ci 6.7 L engine. The rated power output is 123 hp 91.7 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 11,100 lbs 5034 kg.

Engine Power
123 hp 91.7 kW
Fuel & Capacities
7.8 gal/hour 29.5 l/hour
Transmission
infinite forward and reverse (2-range)
Operating Weight
11,100 lbs 5034 kg

International Harvester 1026 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

International Harvester 1026 tractor photo
1970 - 1971 Standard-tread tractor
1970 - 1971
Standard-tread tractor
Production
Manufacturer
International Harvester
Standard-tread tractor
Built in Rock Island, Illinois, USA
Total built
59
Variants
IH 1026
standard
Farmall 1026
row-crop
IH 21026
industrial
International Harvester 1026 Engine
International Harvester 6.7L 6-cyl diesel
Engine details ...
International Harvester 1026 Transmission
hydrostatic
Transmission details ...
International Harvester 1026 Power
Engine (gross)
127 hp 94.7 kW
Engine (net)
123 hp 91.7 kW
PTO (claimed)
112 hp 83.5 kW
Drawbar (tested)
80.24 hp 59.8 kW
PTO (tested)
112.45 hp 83.9 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic dry disc brakes
Open operator station.
Tractor hitch
Rear Type
II
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
1000
540/1000
Dimensions & Tires
Weight
11,100 lbs 5034 kg
Front tire
11L-15
Rear tire
18.4-38
Full dimensions and tires ...
Electrical
Charging system
alternator
Batteries
2
Battery volts
6
References

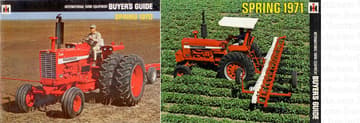

1026 references literature
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester

Engine

Engine Detail — 406.9 ci / 6.7 L Diesel

Manufacturer
International Harvester DT-407
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
406.9 ci 6.7 L
Bore/Stroke
4.321x4.625 inches 110 x 117 mm
Power (net)
123 hp 91.7 kW
Power (gross)
127 hp 94.7 kW
Air cleaner
dual-stage dry
Compression
16:1
Rated RPM
2400
Starter volts
12
Coolant capacity
24 qts 22.7 L

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)
1026 hydrostatic speeds

Dimensions

International Harvester 1026 Tires
Ag front
11L-15
Ag rear
18.4-38
Dimensions
Operating weight
11,100 lbs 5034 kg
Ballasted weight
14,975 lbs 6792 kg
Front tread
60/73/84 inches 152/185/213 cm

Tests

Nebraska Tractor Test 1047
Diesel hydro 2WD June 3 - 27, 1970 Link: Nebraska Tractor Test 1047 file
PTO performance
Power at rated engine speed
112.45 hp 83.9 kW
Fuel use
7.9 gal/hour 29.9 l/hour
Power at rated PTO speed
110.71 hp 82.6 kW
Fuel use
7.1 gal/hour 26.9 l/hour
Drawbar performance
Max power
80.24 hp 59.8 kW
Fuel use
7.8 gal/hour 29.5 l/hour
Max pull
9,583 lbs 4346 kg

Photos

International Harvester 1026 tractor photo

International Harvester 1026 tractor photo
