International Harvester 1455 XL
The International Harvester 1455 XL is a tractor produced by International Harvester. It is equipped with a 402 ci 6.6 L engine. The rated power output is 145 hp 108.1 kW. Transmission: 20 forward and 9 reverse. Operating weight: 12370 lbs 5611 kg.
Engine Power
145 hp
108.1 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
20 forward and 9 reverse
Operating Weight
12370 lbs
5611 kg
International Harvester 1455 XL Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1981 - 1985
Row-Crop tractor |
|---|---|
1981 - 1985 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | International Harvester |
Row-Crop tractor | |
Built in Neuss, Germany | |
International Harvester 1455 XL Engine | |
|---|---|
International Harvester 6.6L 6-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
International Harvester 1455 XL Transmission | |
|---|---|
20-speed | |
Transmission details ...  |
International Harvester 1455 XL Power | |
|---|---|
Engine | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
XL Cab standard. |
Hydraulics | |
|---|---|
Pump flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 12348 lbs
5601 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540, 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.24 inches
280 cm |
Weight | 12370 lbs
5611 kg |
Front tire | 14.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Field Force published in 1981, by International Harvester |
Engine
Engine Detail — 402 ci / 6.6 L Diesel
Manufacturer | International Harvester DT-402 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 402 ci
6.6 L |
Bore/Stroke | 3.94x5.50 inches
100 x 140 mm |
Power | 145 hp
108.1 kW |
Rated RPM | 2200 |
Transmission
Transmission — 20 forward and 9 reverse
Gears | 20 forward and 9 reverse |
Dimensions
International Harvester 1455 XL Tires | |
|---|---|
Ag front | 14.9R28 |
Ag rear | 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 110.24 inches
280 cm |
Length | 186.61 inches
473 cm |
Height | 115.75 inches
294 cm |
Weight | 12370 lbs
5611 kg |
Photos

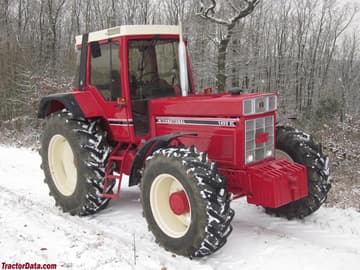

International 1455 XL, right side.
International 1455 XL, left side.
