Iseki SX65
The Iseki SX65 is a tractor produced by Iseki. It is equipped with a 199.4 ci 3.3 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5490 to 5930 pounds.
Engine Power
Diesel (listed): 60 hp / 44.7 kW
Fuel & Capacities
15.9 gal
60.2 L
Transmission
12 forward and 4 reverse
Operating Weight
5490 to 5930 pounds
Overview
 | 1985 - 1990
SX SeriesUtility tractor
SX Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Utility tractor | |
Built in Japan | |
Iseki SX65 Engine | |
|---|---|
Isuzu 3.3L 4-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ...  | |
Iseki SX65 Transmission | |
|---|---|
12-speed syncromesh | |
Transmission details ...  |
Iseki SX65 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Four-post ROPS. |
Hydraulics | |
|---|---|
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5291 lbs
2399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1728 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 84.3 inches
214 cm |
4WD Wheelbase | 85 inches
215 cm |
Weight | 5490 to 5930 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 110 |
Engine
Engine Detail — 199.4 ci / 3.3 L Diesel
Manufacturer | Isuzu 4BC2 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 199.4 ci
3.3 L |
Bore/Stroke | 4.016x3.937 inches
102 x 100 mm |
Power | 60 hp
44.7 kW |
Fuel system | direct injection |
Air cleaner | dual dry element |
Pre-heating | glow plugs |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |

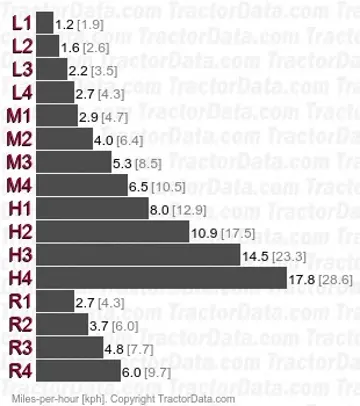

Transmission
Transmission — 12 forward and 4 reverse syncromesh
Type | syncromesh |
Gears | 12 forward and 4 reverse |
Clutch | 330.2mm dry disc |
 | |
Dimensions
Iseki SX65 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-16. Rear: 16.9-30 |
4WD Standard tires (ag) | Front: 9.5-22. Rear: 16.9-30 |
Dimensions | |
|---|---|
2WD Wheelbase | 84.3 inches
214 cm |
4WD Wheelbase | 85 inches
215 cm |
Length | 132.3 inches
336 cm |
Height (exhaust) | 97.6 inches
247 cm |
2WD Weight | 5490 lbs
2490 kg |
4WD Weight | 5930 lbs
2689 kg |
Ground clearance | 14.4 inches
36 cm |
2WD Front tread | 52 to 67.7 inches
132 to 171 cm |
4WD Front tread | 54.3 to 74 inches
137 to 187 cm |
Rear tread | 54 to 70.9 inches
137 to 180 cm |
Photos
Iseki SX65
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki SX65 based on its 60 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki SX65.
Estimated Continuous Field Runtime: 5.1 hrs
Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Estimated 75% Load Fuel Burn~3.1 gal/hr (11.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki SX65 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki SX65.
Converted Equivalents:
Horsepower (HP)60 hp
Kilowatts (kW)44.7 kW
Metric Horsepower (PS / CV)60.8 PS
Direct Competitor Comparison
Compare Iseki SX65 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki SX65
Engine Power:Diesel (listed): 60 hp / 44.7 kW
★ Baseline Reference
