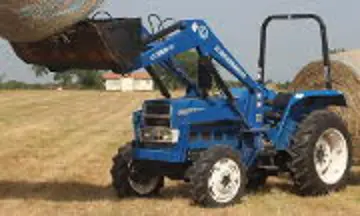

Iseki T6010
The Iseki T6010 is a tractor produced by Iseki. It is equipped with a 199.4 ci 3.3 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: 12 forward and 4 reverse.
Engine Power
Diesel (listed): 60 hp / 44.7 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Overview
![]() | 1985 - 1990
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Utility tractor | |
Built in Japan | |
Iseki T6010 Engine | |
|---|---|
Isuzu 3.3L 4-cyl diesel | |
Engine details ... |
Iseki T6010 Transmission | |
|---|---|
12-speed syncromesh | |
Transmission details ... |
Iseki T6010 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Four-post ROPS. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ... |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 199.4 ci / 3.3 L Diesel
Manufacturer | Isuzu 4BC2 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 199.4 ci
3.3 L |
Bore/Stroke | 4.016x3.937 inches
102 x 100 mm |
Power | 60 hp
44.7 kW |
Fuel system | direct injection |
Air cleaner | dual dry element |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and 4 reverse syncromesh
Type | syncromesh |
Gears | 12 forward and 4 reverse |
Dimensions
Iseki T6010 Tires |
|---|
Dimensions |
|---|
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki T6010 based on its 60 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki T6010.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki T6010 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki T6010.
Converted Equivalents:
Horsepower (HP)60 hp
Kilowatts (kW)44.7 kW
Metric Horsepower (PS / CV)60.8 PS
Direct Competitor Comparison
Compare Iseki T6010 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki T6010
Engine Power:Diesel (listed): 60 hp / 44.7 kW
★ Baseline Reference
