Iseki TA230

The Iseki TA230 is a tractor produced by Iseki. It is equipped with a 87.2 ci 1.4 L engine. The listed engine power is Diesel (listed): 23 hp / 17.2 kW. Transmission: 16 forward and reverse. Operating weight: 2249 to 2480 pounds.

Engine Power
Diesel (listed): 23 hp / 17.2 kW
Fuel & Capacities
7.9 gal 29.9 L
Transmission
16 forward and reverse
Operating Weight
2249 to 2480 pounds

Overview

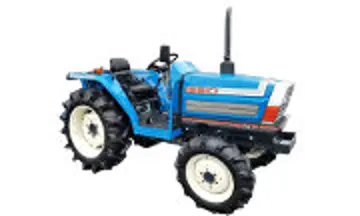

Iseki TA230 tractor photo
1985 - 1987 Landleader TA0 SeriesCompact Utility tractor Landleader TA0 Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Variants
TA230F
4WD
Iseki TA230 Engine
Isuzu 1.4L 3-cyl diesel
Fuel tank
7.9 gal 29.9 L
Engine details ...
Iseki TA230 Transmission
16-speed
Transmission details ...
Iseki TA230 Power
Engine
23 hp 17.2 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
565@2500
733@2500
898@2500
1244@2500
Dimensions & Tires
Wheelbase
63.6 inches 161 cm
Weight
2249 to 2480 pounds
Front tire
4.00-15
2WD Rear tire
9.5-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TA230 references literature
Landleader published in 1987, by Iseki

Engine

Engine Detail — 87.2 ci / 1.4 L Diesel

Manufacturer
Isuzu E3AG1
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
87.2 ci 1.4 L
Bore/Stroke
3.307x3.385 inches 84 x 86 mm
Power
23 hp 17.2 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse
TA230   speeds

Dimensions

Iseki TA230 Tires
2WD Standard tires (ag)
Front: 4.00-15. Rear: 9.5-24
4WD Standard tires (ag)
Front: 7-14. Rear: 9.5-24
Dimensions
Wheelbase
63.6 inches 161 cm
Length
117.3 inches 297 cm
Width
49.2 inches 124 cm
Height (exhaust)
75 inches 190 cm
2WD Weight
2249 lbs 1020 kg
4WD Weight
2480 lbs 1124 kg
Ground clearance
11 inches 27 cm
2WD Front tread
37.8/41.7 inches 96/105 cm
4WD Front tread
42.1 inches 106 cm
Rear tread
38.6/44.5 inches 98/113 cm

Photos

Iseki TA230 tractor photo

Iseki TA230 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TA230 based on its 23 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TA230.

Estimated Continuous Field Runtime: 6.6 hrs

Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TA230 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA230.

Converted Equivalents:

Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS

Direct Competitor Comparison

Compare Iseki TA230 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TA230

Engine Power:Diesel (listed): 23 hp / 17.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota FT21

Engine Power:20.7
Production Years:2012 - 2015
Massey FergusonMarket Competitor

Massey Ferguson 1020

Engine Power:21
Production Years:1983 - 1994
YanmarMarket Competitor

Yanmar F-210

Engine Power:20.7
Production Years:1992 - 1998
MitsubishiMarket Competitor

Mitsubishi GS21

Engine Power:20.7
Production Years:2003 - 2005
