Iseki TL1901
The Iseki TL1901 is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The listed engine power is Diesel (listed): 18.7 hp / 13.9 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2006 to 2328 pounds.
Overview
![]() | 1980 - 1985
TL-01 SeriesCompact Utility tractor
TL-01 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TL1901F | 4WD |
Iseki TL1901 Engine | |
|---|---|
Isuzu 1.3L 3-cyl diesel | |
Fuel tank | 7.4 gal
28.0 L |
Engine details ... | |
Iseki TL1901 Transmission | |
|---|---|
18-speed | |
Transmission details ... |
Iseki TL1901 Power | |
|---|---|
Engine | 18.7 hp
13.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 553@2600 |
731@2600 | |
906@2600 | |
1280@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 2006 to 2328 pounds |
Front tire | 4.00-15 |
2WD Rear tire | 9.5-22 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

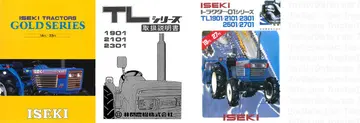

References | |
|---|---|
![]() | |
Gold Series published in 1984, by Iseki | |
TL1901 - TL2301 (1444-912-001-1C) | |
TL1901/2101/2301/2501/2701 published in 1984, by Iseki |

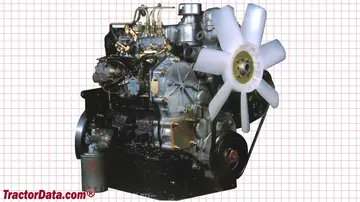

Engine
Engine Detail — 79.1 ci / 1.3 L Diesel
Manufacturer | Isuzu E3AE1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 79.1 ci
1.3 L |
Bore/Stroke | 3.15x3.386 inches
80 x 86 mm |
Power | 18.7 hp
13.9 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Oil capacity | 5.1 qts
4.8 L |
Iseki TL1901 Engine | |
|---|---|
![]() |

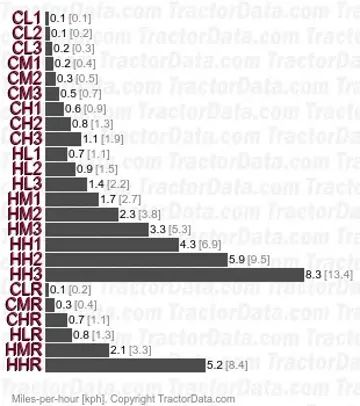

Transmission
Transmission — 18 forward and 6 reverse
Gears | 18 forward and 6 reverse |
Oil capacity | 33.8 qts
32.0 L |
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges. | |
![]() | |
Dimensions
Iseki TL1901 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-15. Rear: 9.5-22 |
4WD Standard tires (ag) | Front: 6-14. Rear: 9.5-22 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
2WD Length | 106.3 inches
270 cm |
4WD Length | 109.1 inches
277 cm |
2WD Width | 47.6 inches
120 cm |
4WD Width | 48.8 inches
123 cm |
2WD Height (exhaust) | 76 inches
193 cm |
4WD Height (exhaust) | 76.4 inches
194 cm |
2WD Weight | 2006 lbs
909 kg |
4WD Weight | 2328 lbs
1055 kg |
2WD Ground clearance | 12.8 inches
32 cm |
4WD Ground clearance | 10.6 inches
26 cm |
2WD Front tread | 36.2 to 40.6 inches
91 to 103 cm |
4WD Front tread | 39.4 inches
100 cm |
Rear tread | 37 to 42.9 inches
93 to 108 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TL1901 based on its 18.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TL1901.
Estimated Continuous Field Runtime: 7.6 hrs
Approximately 7.6 hours of continuous field operation at ~75% rated power on a full tank (7.4 gal / 28 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Iseki TL1901 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL1901.
Converted Equivalents:
Direct Competitor Comparison
Compare Iseki TL1901 against same-era industry alternatives in the same horsepower class.
Iseki TL1901
