Iseki TA250

The Iseki TA250 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 25 hp 18.6 kW. Transmission: 16 forward and reverse. Operating weight: 2348 to 2557 pounds.

Overview

	1985 - 1987 Landleader TA0 SeriesCompact Utility tractor
1985 - 1987
Landleader TA0 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA250F	4WD

Iseki TA250 Engine
Isuzu 1.5L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Iseki TA250 Transmission
16-speed
Transmission details ...

Iseki TA250 Power
Engine	25 hp 18.6 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Tractor hitch
Rear Type	JIS1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	565@2500
	733@2500
	898@2500
	1244@2500

Dimensions & Tires
Wheelbase	63.6 inches 161 cm
Weight	2348 to 2557 pounds
Front tire	5.00-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Landleader published in 1987, by Iseki

Engine

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer	Isuzu E3AD1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.385x3.385 inches 86 x 86 mm
Power	25 hp 18.6 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Iseki TA250 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	63.6 inches 161 cm
Length	117.3 inches 297 cm
Width	52 inches 132 cm
Height (exhaust)	76 inches 193 cm
2WD Weight	2348 lbs 1065 kg
4WD Weight	2557 lbs 1159 kg
Ground clearance	11.8 inches 29 cm
2WD Front tread	38.6/42.5/46.5/50.4 inches 98/107/118/128 cm
4WD Front tread	42.1 inches 106 cm
Rear tread	40.2/43.3/44.9/48/52.8 inches 102/109/114/121/134 cm

Photos

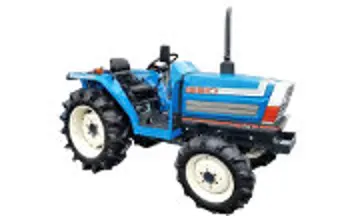

Iseki TA250

Iseki TA250

Iseki TA250

Iseki TA250
