Iseki TL2101
The Iseki TL2101 is a tractor produced by Iseki. It is equipped with a 87.2 ci 1.4 L engine. The rated power output is 20.7 hp 15.4 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2094 to 2326 pounds.
Engine Power
20.7 hp
15.4 kW
Fuel & Capacities
7.4 gal
28.0 L
Transmission
18 forward and 6 reverse
Operating Weight
2094 to 2326 pounds
Iseki TL2101 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1985
TL-01 SeriesCompact Utility tractor |
|---|---|
1980 - 1985 | |
TL-01 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TL2101F | 4WD |
Iseki TL2101 Engine | |
|---|---|
Isuzu 1.4L 3-cyl diesel | |
Fuel tank | 7.4 gal
28.0 L |
Engine details ...  | |
Iseki TL2101 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Iseki TL2101 Power | |
|---|---|
Engine | 20.7 hp
15.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 553@2600 |
731@2600 | |
906@2600 | |
1280@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 62.2 inches
157 cm |
Weight | 2094 to 2326 pounds |
Front tire | 4.00-15 |
2WD Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Gold Series published in 1984, by Iseki | |
TL1901 - TL2301 (1444-912-001-1C) | |
TL1901/2101/2301/2501/2701 published in 1984, by Iseki |
Engine

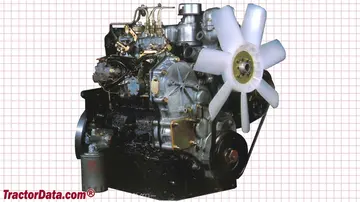

Engine Detail — 87.2 ci / 1.4 L Diesel
Manufacturer | Isuzu E3AG1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 87.2 ci
1.4 L |
Bore/Stroke | 3.307x3.385 inches
84 x 86 mm |
Power | 20.7 hp
15.4 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Oil capacity | 5.1 qts
4.8 L |
Iseki TL2101 Engine | |
|---|---|
 |
Transmission

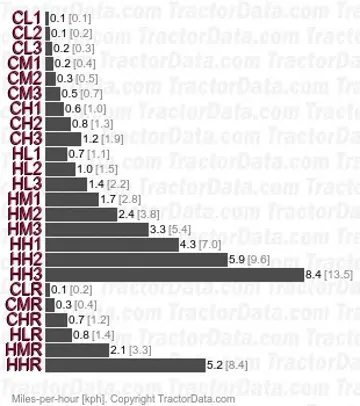

Transmission — 18 forward and 6 reverse
Gears | 18 forward and 6 reverse |
Oil capacity | 36 qts
34.1 L |
Three gears (1-3), plus reverse (R), in three ranges. Additional shift between working and creeper ranges. | |
 | |
Dimensions
Iseki TL2101 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-15. Rear: 9.5-24 |
4WD Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 62.2 inches
157 cm |
Length | 113 inches
287 cm |
Width | 49.2 inches
124 cm |
Height (exhaust) | 78 inches
198 cm |
2WD Weight | 2094 lbs
949 kg |
4WD Weight | 2326 lbs
1055 kg |
2WD Ground clearance | 11.8 inches
29 cm |
4WD Ground clearance | 11 inches
27 cm |
2WD Front tread | 37.8 inches
96 cm |
4WD Front tread | 41.3 inches
104 cm |
Rear tread | 38.6 to 44.5 inches
98 to 113 cm |
Photos

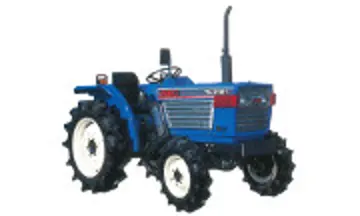

Iseki TL2101 tractor photo
Iseki TL2101 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL2101.
Converted Equivalents:
Horsepower (HP)20.7 hp
Kilowatts (kW)15.4 kW
Metric Horsepower (PS / CV)21 PS
