Iseki TA270

The Iseki TA270 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 27 hp 20.1 kW. Transmission: 16 forward and reverse. Operating weight: 2414 to 2590 pounds.

Engine Power
27 hp 20.1 kW
Fuel & Capacities
7.9 gal 29.9 L
Transmission
16 forward and reverse
Operating Weight
2414 to 2590 pounds

Iseki TA270 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

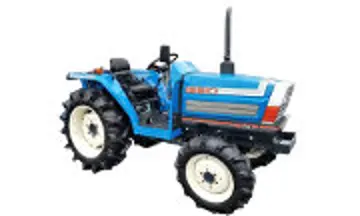

Iseki TA270 tractor photo
1985 - 1987 Landleader TA0 SeriesCompact Utility tractor
1985 - 1987
Landleader TA0 Series
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Variants
TA270F
4WD
Iseki TA270 Engine
Isuzu 1.5L 3-cyl diesel
Fuel tank
7.9 gal 29.9 L
Engine details ...
Iseki TA270 Transmission
16-speed
Transmission details ...
Iseki TA270 Power
Engine
27 hp 20.1 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
565@2500
733@2500
898@2500
1244@2500
Dimensions & Tires
Wheelbase
66.9 inches 169 cm
Weight
2414 to 2590 pounds
Front tire
5.00-15
2WD Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TA270 references literature
Landleader published in 1987, by Iseki

Engine

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer
Isuzu E3AD1
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
91.4 ci 1.5 L
Bore/Stroke
3.385x3.385 inches 86 x 86 mm
Power
27 hp 20.1 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

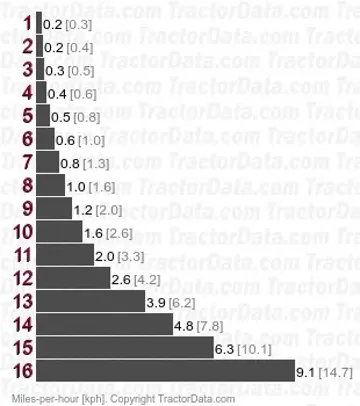

TA270 speeds

Dimensions

Iseki TA270 Tires
2WD Standard tires (ag)
Front: 5.00-15. Rear: 12.4-24
4WD Standard tires (ag)
Front: 7-16. Rear: 12.4-24
Dimensions
Wheelbase
66.9 inches 169 cm
Length
120.9 inches 307 cm
Width
53.4 inches 135 cm
Height (exhaust)
75.6 inches 192 cm
2WD Weight
2414 lbs 1094 kg
4WD Weight
2590 lbs 1174 kg
Ground clearance
13 inches 33 cm
2WD Front tread
38.6/42.5/46.5/50.4 inches 98/107/118/128 cm
4WD Front tread
42.1 inches 106 cm
Rear tread
40.2/43.3/44.9/48/52.8 inches 102/109/114/121/134 cm

Photos

Iseki TA270 tractor photo

Iseki TA270 tractor photo

Iseki TA270 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA270.

Converted Equivalents:

Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
