Iseki TA227

The Iseki TA227 is a tractor produced by Iseki. It is equipped with a 87.2 ci 1.4 L engine. The rated power output is 21.7 hp 16.2 kW. Transmission: 16 forward and reverse. Operating weight: 2194 to 2866 pounds.

Overview

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA227F	4WD

Iseki TA227 Engine
Iseki 1.4L 3-cyl diesel
Fuel tank	5.6 gal 21.2 L
Engine details ...

Iseki TA227 Transmission
16-speed
Transmission details ...

Iseki TA227 Power
Engine	21.7 hp 16.2 kW

Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.

Photos
Iseki TA227 photos...

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	565@2500
	733@2500
	1060@2500
	1244@2500

Dimensions & Tires
Wheelbase	61.6 inches 156 cm
Weight	2194 to 2866 pounds
Front tire	4.00-15
2WD Rear tire	9.5-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Land Leader 7 Series published in 1993, by Iseki

Engine

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Engine Detail
Iseki E3AG1
diesel
3-cylinder
liquid-cooled
Displacement	87.2 ci 1.4 L
Bore/Stroke	3.307x3.385 inches 84 x 86 mm
Power	21.7 hp 16.2 kW
Rated RPM	2500
Starter	electric
Starter volts	12
Oil capacity	5.1 qts 4.8 L

Iseki TA227 Engine

Transmission

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Transmission
Gears	16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

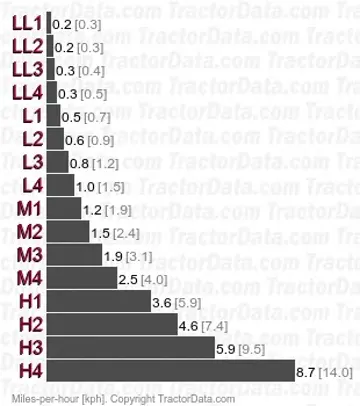

Speeds

Dimensions

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Iseki TA227 Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-22
4WD Standard tires (ag)	Front: 6-14. Rear: 9.5-22

Dimensions
Wheelbase	61.6 inches 156 cm
Length	114.4 inches 290 cm
Width	49.2 inches 124 cm
Height (steering wheel)	54.9 inches 139 cm
Height (cab)	74.6 inches 189 cm
Ground clearance	10.4 inches 26 cm
2WD Front tread	35.8/39.8 inches 90/101 cm
4WD Front tread	42.2 inches 107 cm
Rear tread	37/42.9 inches 93/108 cm

Iseki TA227 Weight
2WD Open	2194 lbs 995 kg
4WD Open	2381 lbs 1080 kg
2WD Cab	2679 lbs 1215 kg
4WD Cab	2866 lbs 1300 kg

Photos

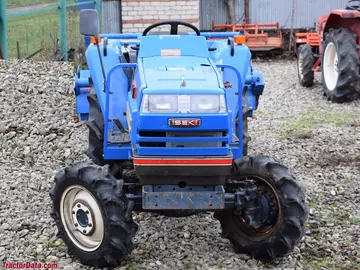

Iseki TA227

Iseki TA227

Iseki TA227

Iseki TA227

Iseki TA227

Iseki TA227 operator station and controls.
