Iseki TE4270

The Iseki TE4270 is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The rated power output is 26.6 hp 19.8 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2249 to 2447 pounds.

Overview

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Iseki TE4270 Engine
Isuzu 1.3L 3-cyl diesel
Fuel tank	7.4 gal 28.0 L
Engine details ...

Iseki TE4270 Transmission
18-speed synchromesh
Transmission details ...

Iseki TE4270 Power
Engine (gross)	29.6 hp 22.1 kW
Engine (net)	26.6 hp 19.8 kW

Mechanical
Two- or four-wheel drive
Steering	manual
Steering	power OptOptional
Wet disc brakes
Open operator station.

Photos
Iseki TE4270 photos...

Hydraulics
Pump flow	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type	JISI
Control	position control with optional draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2280
	1000@2540

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	2249 to 2447 pounds
Front tire	5.00-15
2WD Rear tire	12.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Technical Annual published in 1988, by Power Farming
Tractors TE4270 published in 1983, by Iseki

Engine

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Engine Detail
Isuzu E3AE1
diesel
3-cylinder
liquid-cooled
Displacement	79.1 ci 1.3 L
Bore/Stroke	3.15x3.386 inches 80 x 86 mm
Power (net)	26.6 hp 19.8 kW
Power (gross)	29.6 hp 22.1 kW
Air cleaner	dry
Pre-heating	glow plugs
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Transmission
Type	synchromesh
Gears	18 forward and 6 reverse
Clutch	dry disc
Three gears (1-3), plus reverse (R), in three ranges (L/M/H) with additional creeper range.

Speeds

Dimensions

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Iseki TE4270 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 12.2-24
4WD Standard tires (ag)	Front: 7-16. Rear: 12.2-24

Dimensions
Wheelbase	65 inches 165 cm
Length	115.8 inches 294 cm
Width	52 inches 132 cm
2WD Height	78 inches 198 cm
4WD Height	79.9 inches 202 cm
2WD Weight	2249 lbs 1020 kg
4WD Weight	2447 lbs 1109 kg
2WD Ground clearance	14.6 inches 37 cm
4WD Ground clearance	13.4 inches 34 cm
2WD Front tread	37.8 to 41.7 inches 96 to 105 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	40.2 to 52.8 inches 102 to 134 cm

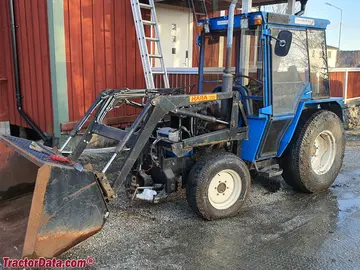

Photos
