Iseki TG6400
The Iseki TG6400 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The listed engine power is Diesel (gross): 38.5 hp / 28.7 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3053 to 3384 pounds.
Overview
![]() | 2015 -
TG6000 SeriesCompact Utility tractor |
|---|---|
2015 - | |
TG6000 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Built in Japan | |
Iseki TG6400 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ... | |
Iseki TG6400 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Iseki TG6400 Power | |
|---|---|
Engine (gross) | 38.5 hp
28.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | standard |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. | |
Hydraulics | |
|---|---|
Rear valves | 2 |
Pump flow | 12.6 gpm
47.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 2800 lbs
1270 kg |
Rear lift (at 24"/610mm) | 2535 lbs
1149 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 69.7 inches
177 cm |
Weight | 3053 to 3384 pounds |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Charging system | alternator |
Battery CCA | 582 |
Battery volts | 12 |
Battery AH | 55 |
References | |
|---|---|
![]() | |
TG Series Compact Tractors published in 2015, by Iseki | |
TG Series Compact Tractors published in 2016, by Iseki |
Engine
Engine Detail — 91.4 ci / 1.5 L Diesel
Manufacturer | Iseki E3CDT |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.4 ci
1.5 L |
Power (gross) | 38.5 hp
28.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
Iseki TG6400 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 69.7 inches
177 cm |
Length | 120.9 inches
307 cm |
Width | 60.8 inches
154 cm |
Height (ROPS) | 101.2 inches
257 cm |
Height (cab) | 89.6 inches
227 cm |
ROPS Shipping weight | 3053 lbs
1384 kg |
Cab Shipping weight | 3384 lbs
1534 kg |

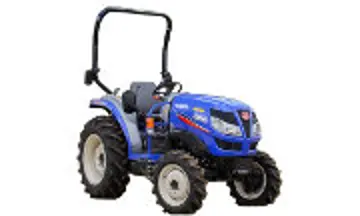

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TG6400 based on its 38.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TG6400.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Iseki TG6400 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TG6400.
Converted Equivalents:
Direct Competitor Comparison
Compare Iseki TG6400 against same-era industry alternatives in the same horsepower class.
Iseki TG6400
